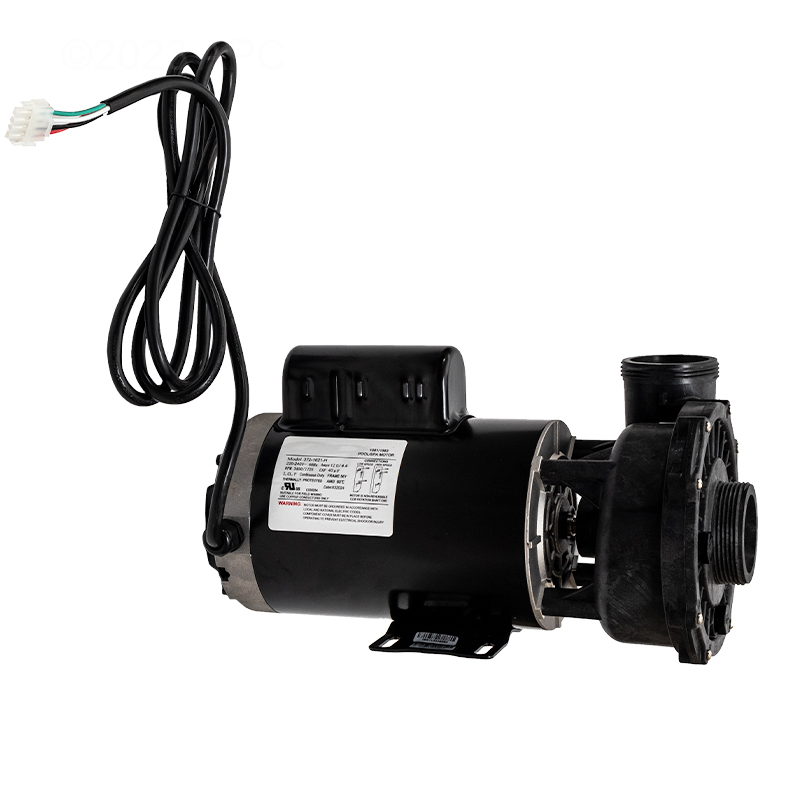

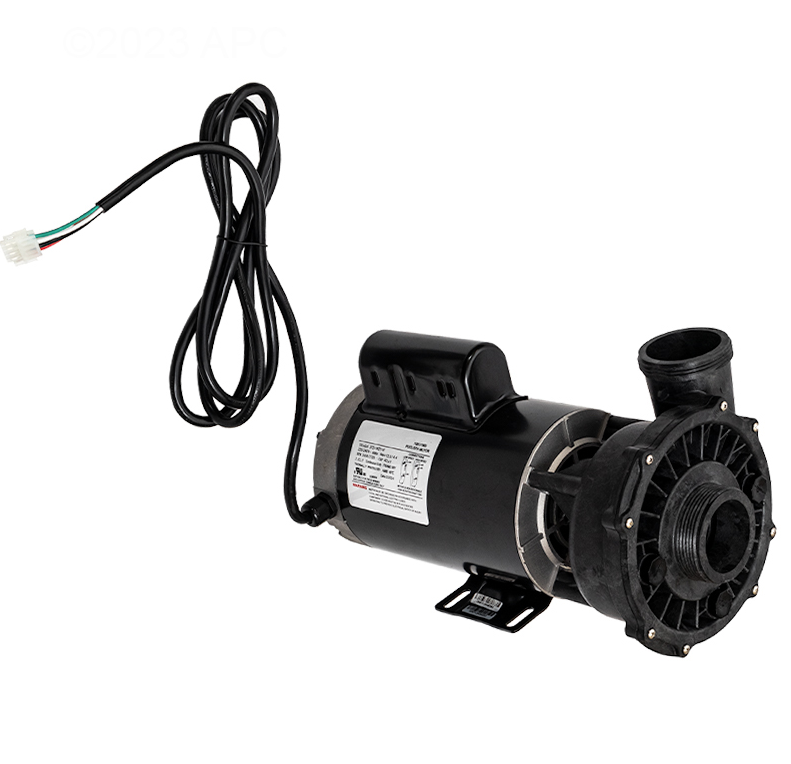

Waterway 4HP 230V 2Speed 56F Pump WWME4022620

Waterway 4HP 230V 2Speed 56F Pump WWME4022620

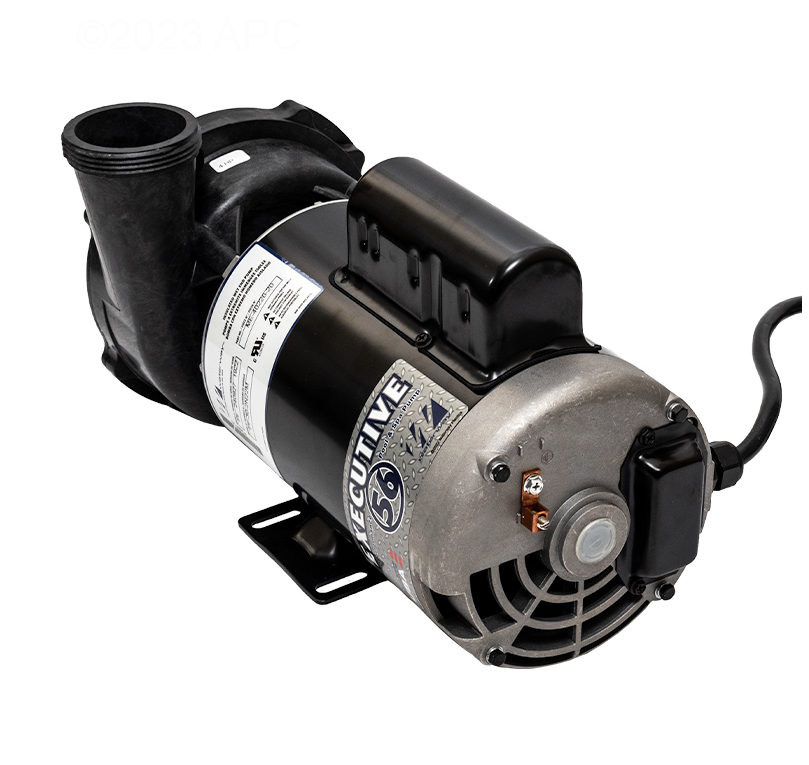

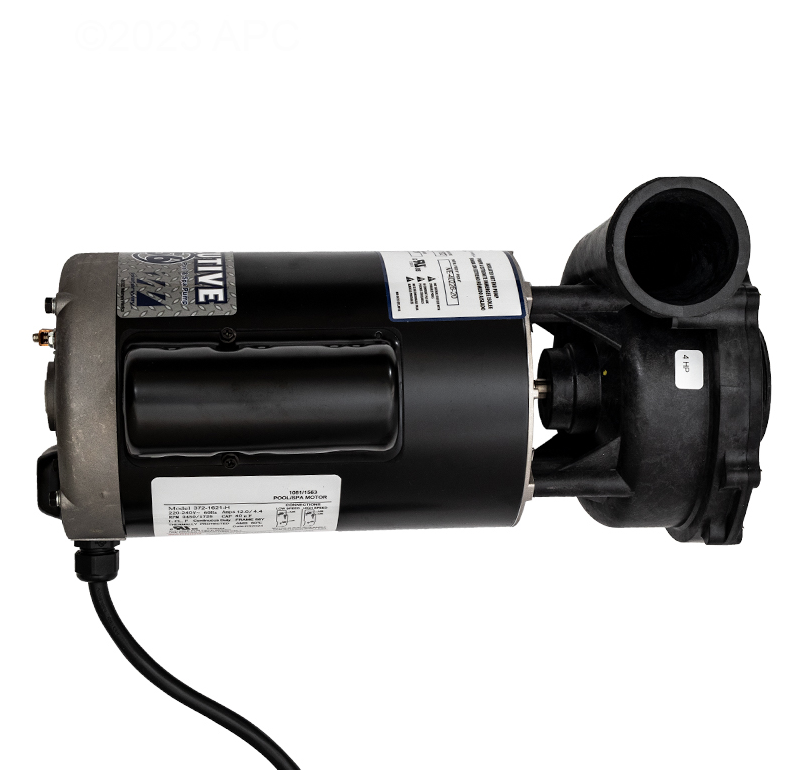

Upgrade your spa’s performance with the Waterway Executive 56-Frame Spa Pump, model 3721621-1D. This powerhouse features a robust 4 HP, 2-speed motor designed for both high-powered jet action and efficient, quiet circulation. The Executive wet end is engineered specifically for 56-frame motors, delivering cooler operation, added strength, and a longer motor life for your hot tub or spa.

Key Features & Benefits

• Dual-Speed Versatility: Switch between high speed for intense hydrotherapy and low speed for energy-saving filtration and circulation.

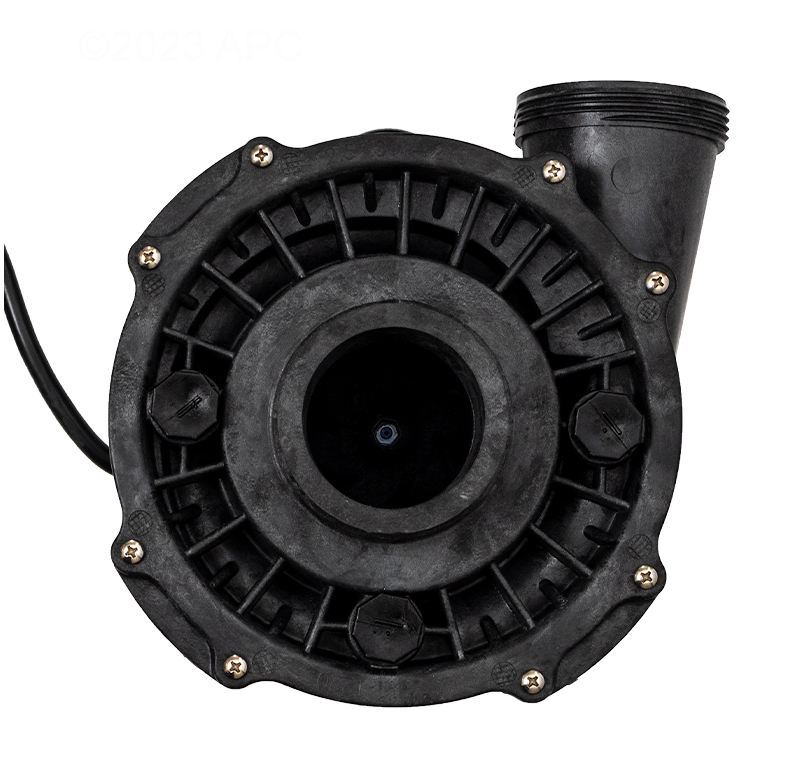

• Executive Wet End: Large 6-1/2" diameter wet end and 2" intake maximize flow and head pressure, while reducing noise.
• Quiet, Reliable Operation: Two double-shielded ball bearings with moisture-resistant grease ensure quieter performance and extended lifespan.
• Energy Efficient: Split capacitor (start and run) and four sets of insulated windings reduce energy consumption and running costs.
• Flexible Installation: Highly versatile wet end can be rotated every 90° to fit your plumbing setup.
• Durable Construction: Viton seal for chemical resistance, thermally protected motor, and a 56-frame design for strength and cool operation.

Specifications

• Horsepower: 4 HP
• Voltage: 230V
• Speed: 2-speed (high/low)
• Frame: 56-Frame
• Intake/Discharge: 2" MBT (measures 3-1/16" OD)
• Flow Rate: Up to 240 GPM (high speed)
• Amperage: 12A (high), 4.4A (low)
• Dimensions: Approx. 15.8" L x 8.05" W x 9.08" H

Why Choose Waterway Executive?
Trusted by spa owners and professionals, the Executive 56-Frame Spa Pump delivers dependable power, quiet operation, and long-lasting durability for a superior spa experience
