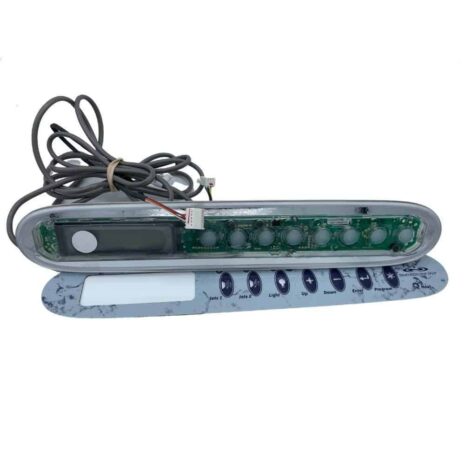

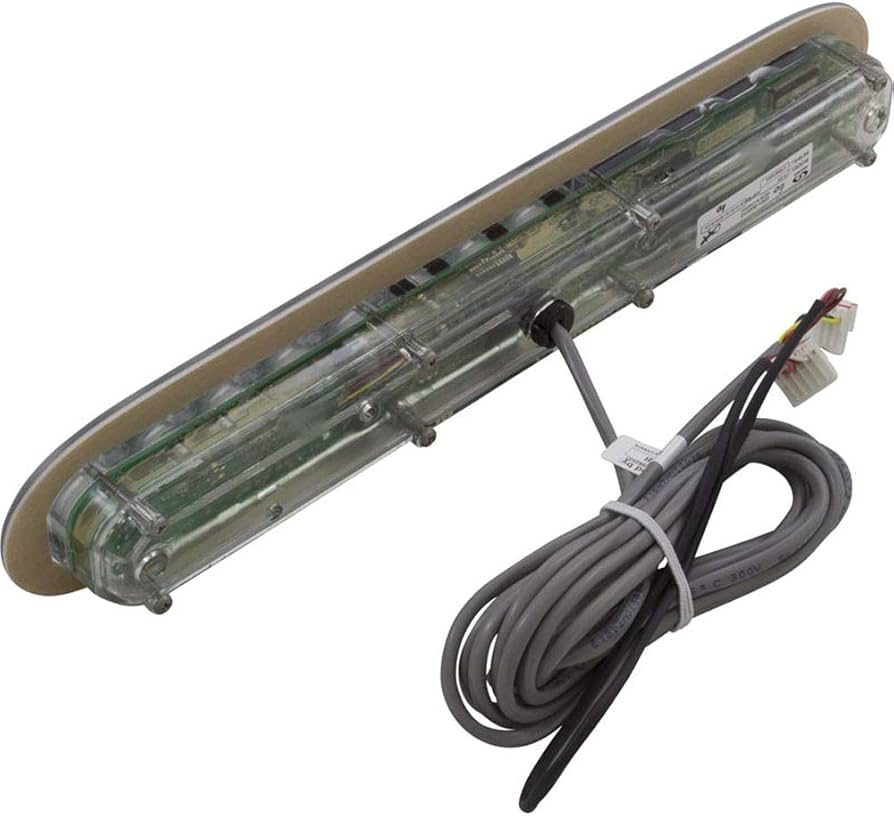

Dimension One Spas K24 Topside Control 01580-0001

Dimension One Spas K24 Topside Control 01580-0001

Revive the command center of your Dimension One Reflections series hot tub with the K24 scrolling message center topside control (01580-0001), known as the "White Dot" model. This OEM replacement delivers intuitive operation, clear LCD messaging, and reliable performance for seamless spa control.

Key Features & Benefits

• Scrolling message LCD provides easy-to-read status updates on temperature, modes, and alerts for effortless monitoring.

• 8-button interface offers precise control over pumps, blower, light, and settings with responsive touch pads.

• "White Dot" design matches original Reflections aesthetics, restoring that clean, factory-fresh look.

• Gecko MSPA-1 compatible integrates perfectly with D1 systems using interchangeable inlays for customized button layouts.

• Durable construction withstands spa humidity and frequent use for long-lasting reliability.

• Simple plug-and-play install uses standard 4-pin and 6-pin connectors for quick replacements.


Specifications

• Part Number: 01580-0001

• Model: K24 / TSC-24-D13 (8-button, intelligent upper control)

• Display: Scrolling message LCD

• Connectors: 4-pin (primary), 6-pin (optional remote)

• Dimensions: Face width approx. 13 1/4 inches

• Compatibility: Dimension One Reflections series; Gecko MSPA-MP systems

• Inlay Options: 01560-350 (2-pump), 01560-351 (Triad II/Seville), others


The Dimension One K24 Topside Control 01580-0001 brings back full functionality and modern clarity to your Reflections spa, ensuring customers enjoy precise, hassle-free operation.
