CMI 3"x100' Equipotential Bonding Grid Kit EB3100

CMI 3"x100' Equipotential Bonding Grid Kit EB3100

Make pool safety and code compliance easier with the CMI 3' x 100' Equipotential Bonding Grid Kit. Designed to create a uniform electrical potential around your pool deck, this NEC®-compliant system helps protect swimmers and guests from dangerous stray voltage while simplifying installation for builders and electricians.

Key Features & Benefits

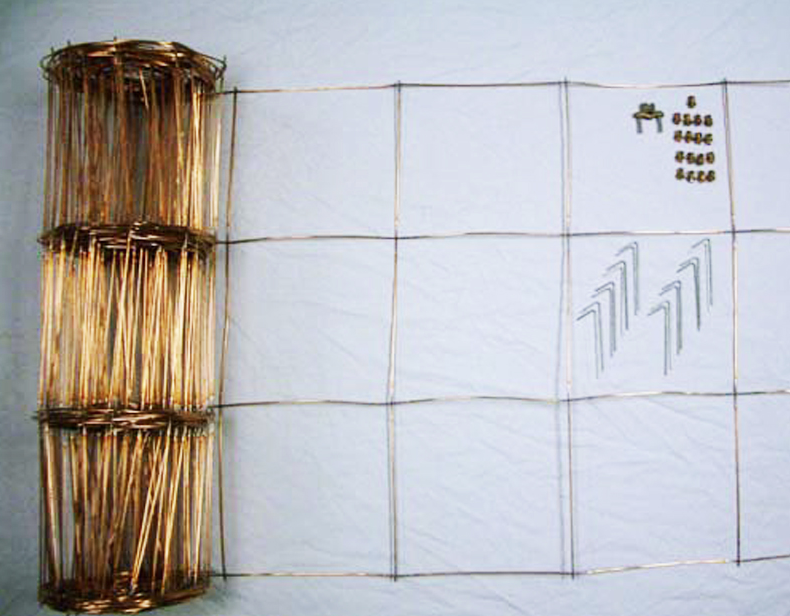

• 3' x 100' copper bonding grid installs beneath concrete or paver decks, extending 3 feet out from the pool’s inside edge as required by code.
• Meets NEC® Section 680.26(C) and utility industry standards for equipotential bonding, supporting safe, code-compliant pool installations.
• Made from exothermically welded #8 solid copper with 12" grid spacing for reliable conductivity, durability, and corrosion resistance.
• Helps equalize electrical potential and protect against lethal stray voltage around the pool area, reducing electrical shock risk.
• Ideal when the pool perimeter beam is less than 12", providing the full 3' bonding zone in one easy-to-install roll.
• Roll-out design with included stakes makes it a one-person installation, saving time and labor on the job site.

Included Installation Hardware

• UL-listed JRD rebar clamp rated for two #8 bond wires for secure, direct-burial connections.
• 17 #8 split bolts to tie in corners and connect grid sections to the rebar clamp.
• 16 metal stakes to hold the grid in place while rolling out and positioning under the deck.

Specifications

• Model: EB3100
• Size: 3 feet wide x 100 feet long copper grid roll.
• Material: Exothermically welded #8 solid copper conductors.
• Grid spacing: 12 inches on center.
• Application: Equipotential bonding under pool decks (concrete or pavers), 3' from inside pool edge.
• Compliance: NEC® 680.26(C) and utility equipotential bonding requirements.

Use the CMI EB3100 Equipotential Bonding Grid Kit to create a safer, electrically balanced pool environment while checking off critical code and inspection requirements in one step.
