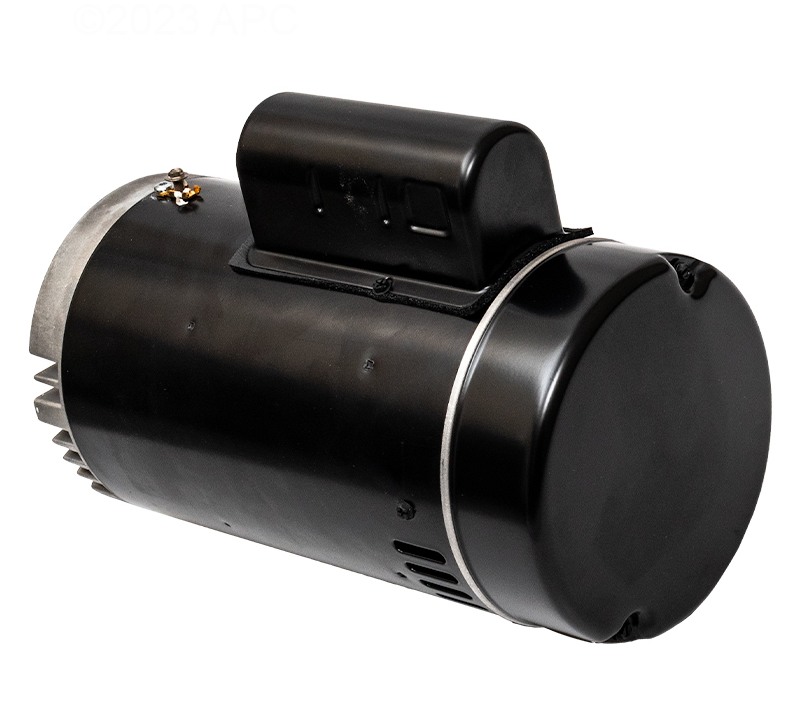

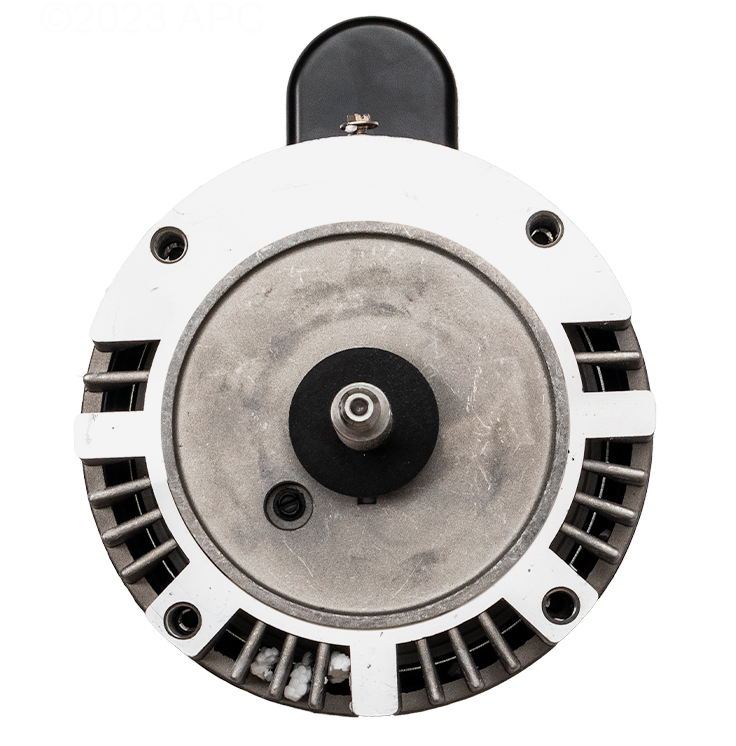

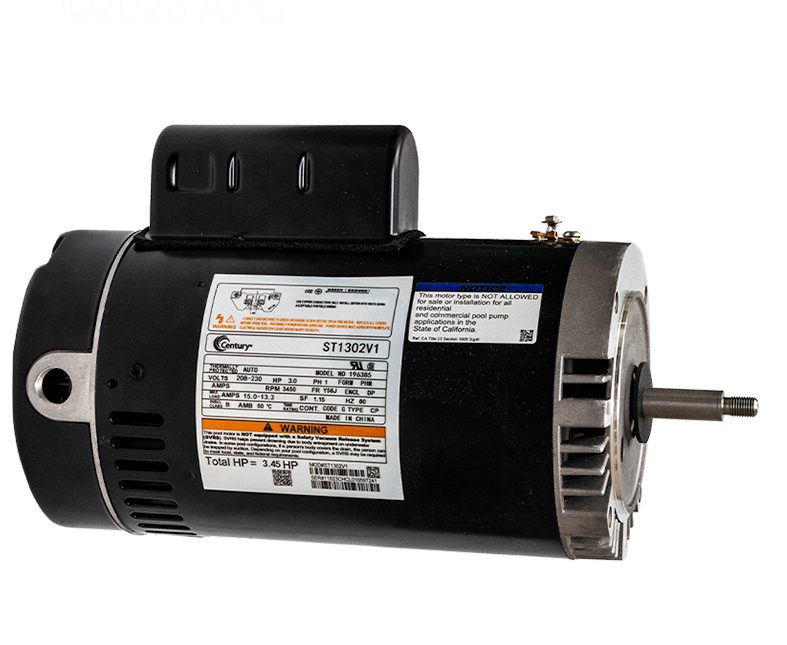

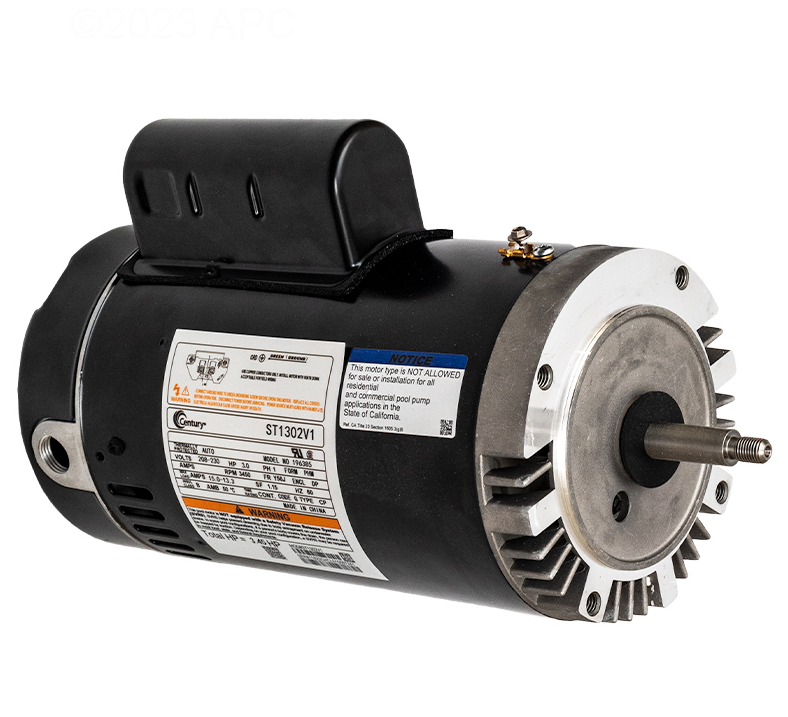

Century Full Rated 3HP 208/230V 56J Frame Motor ST1302V1

Century Full Rated 3HP 208/230V 56J Frame Motor ST1302V1

Power, durability, and proven performance come together in the Century® ST1302V1 Full-Rated Pool Filter Motor. Built by Regal Beloit, this 3 HP motor is engineered for high-demand pool systems, offering reliable operation and consistent water circulation. With its robust construction and universal compatibility, it’s a top choice for professionals servicing Jacuzzi and Jandy pump models.

This two-compartment motor features a threaded stainless steel shaft, sealed ball bearings, and an open drip proof (ODP) enclosure for long-lasting performance in tough pool environments. Whether you're installing a new system or replacing an existing motor, the ST1302V1 delivers solid performance you can trust.

Key Features & Benefits

• Powerful 3 HP Output
  Ideal for high-capacity pool systems that require steady, high-volume water flow.
• Full-Rated Efficiency
  Built with a 1.5 service factor for strong, consistent operation under full load conditions.
• Durable Threaded Shaft
  Made from 303 stainless steel for excellent resistance to corrosion and long service life.
• Open Drip Proof Enclosure
  Promotes internal airflow to help maintain proper operating temperatures.
• Sealed Ball Bearings
  Designed for quiet performance and reduced maintenance in wet environments.
• Two-Compartment Design
  Makes wiring and access easier during service or installation.
• Trusted Compatibility
  Fits a wide range of Jacuzzi and Jandy pump models, including Magnum, Ring-Lok, and HHP series.

Specifications

• Horsepower: 3 HP
• Voltage: 208–230V
• Amps: 14.5/13.8A
• Speed: 3450 RPM
• Frame: 56J
• Motor Enclosure: Open Drip Proof (ODP)
• Shaft Type: Threaded, 303 stainless steel
• Rotation: Counter Clockwise Pump End (CCWPE)
• Service Factor: 1.5
• Motor Type: Two-Compartment
• Bearing Type: Sealed Ball
• Mounting: C-Face

Series Compatibility:

• Jacuzzi® L Series
• Jacuzzi® Magnum
• Jacuzzi® P, PC, EP
• Jacuzzi® PH and UPH
• Jacuzzi® RC and Ring-Lok
• Jandy® JHP, HHP, and related HHPU models

From service jobs to new pump builds, the Century® ST1302V1 Pool Filter Motor delivers the kind of dependable, high-performance operation your pool system needs to run smoothly.
