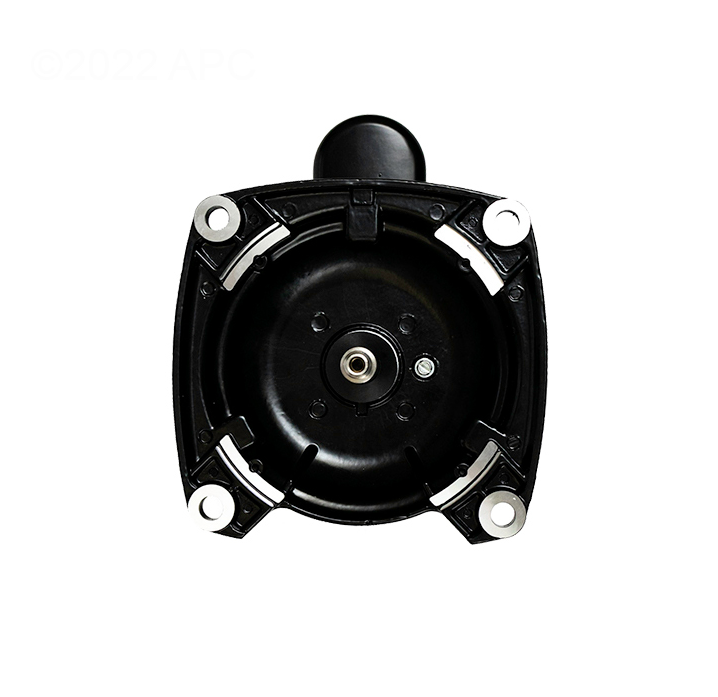

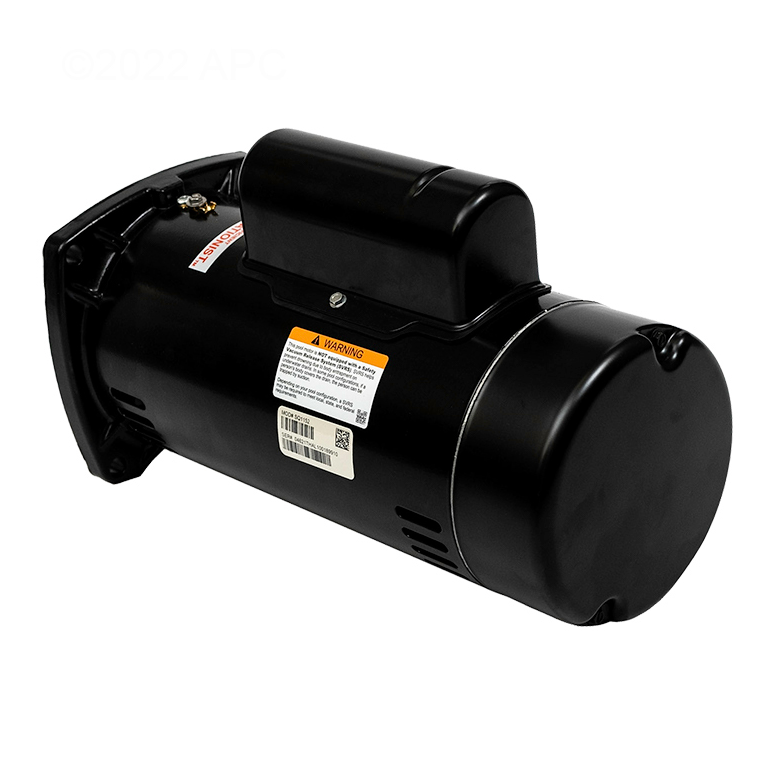

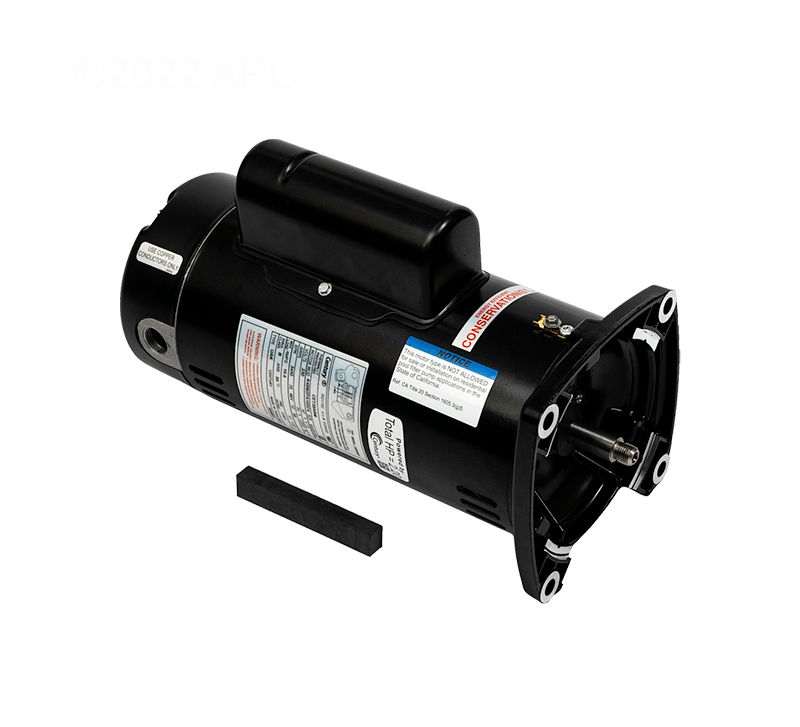

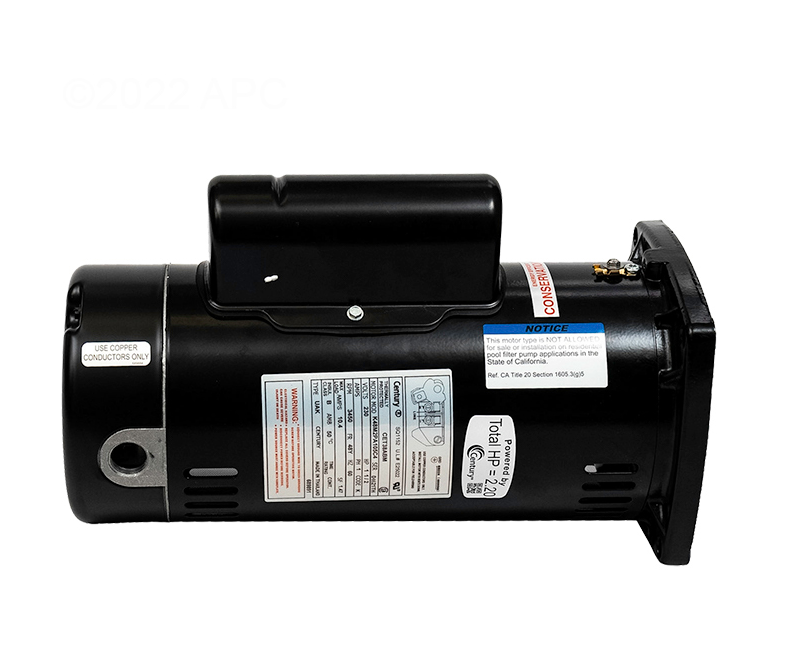

Century Full Rated 1.5HP 230V 48Y Frame Motor SQ1152

Century Full Rated 1.5HP 230V 48Y Frame Motor SQ1152

The Century® SQ1152 Pool Filter Motor is a trusted replacement option for high-performing pool and spa systems that require full-rated power and lasting reliability. Featuring a square flange design and two-compartment construction, this 1.5 HP motor is ideal for a range of Sta-Rite and Jandy pumps. With its sturdy build, powerful output, and proven durability, the SQ1152 supports consistent water circulation, even under demanding conditions.

Key Features & Benefits

• Full-Rated 1.5 HP Motor
  Delivers steady, high-output power for pool systems that require strong, continuous water flow.
• Square Flange 48Y Frame
  Designed for a secure fit with many pool pump brands, making replacement simple and reliable.
• Durable Threaded Shaft
  Built for strength and long-term corrosion resistance in challenging pool environments.
• Open Drip Proof (ODP) Enclosure
  Allows for proper airflow while helping prevent moisture intrusion.
• Two-Compartment Design
  Simplifies wiring, access, and maintenance with a cleaner layout.
• Sealed Ball Bearings
  Offer smooth, quiet operation to support a relaxing poolside atmosphere.
• Reliable Thermal Protection
  Automatically shuts the motor off in high-heat or overload situations to protect against damage.
• Widely Compatible
  Direct replacement for a variety of popular pool pump models by Sta-Rite and Jandy.

Specifications

• Horsepower: 1.5 HP
• Voltage: 230V
• Speed: 3450 RPM
• Frame: 48Y Square Flange
• Service Factor: 1.47
• Amperage: 10.4 A
• Shaft Type: Threaded
• Mounting Style: C-Face
• Bearing Type: Sealed Ball Bearings
• Motor Enclosure: Open Drip Proof (ODP)
• Motor Type: Two-Compartment
• Rotation: Counterclockwise Pump End

Application:

• Jandy MHP/MHPU Pumps
• Sta-Rite Dyna-Pro & Dyna-Pro E
• Sta-Rite Max-E Glas & Dura-Glas
• Sta-Rite Max-E Glas II & Dura-Glas II
• Sta-Rite Max-E Pro Series
• Sta-Rite SuperMax Pumps

The Century® SQ1152 offers a professional-grade replacement solution built to support reliable and efficient performance—ideal for both service professionals and pool owners looking for dependable operation.
