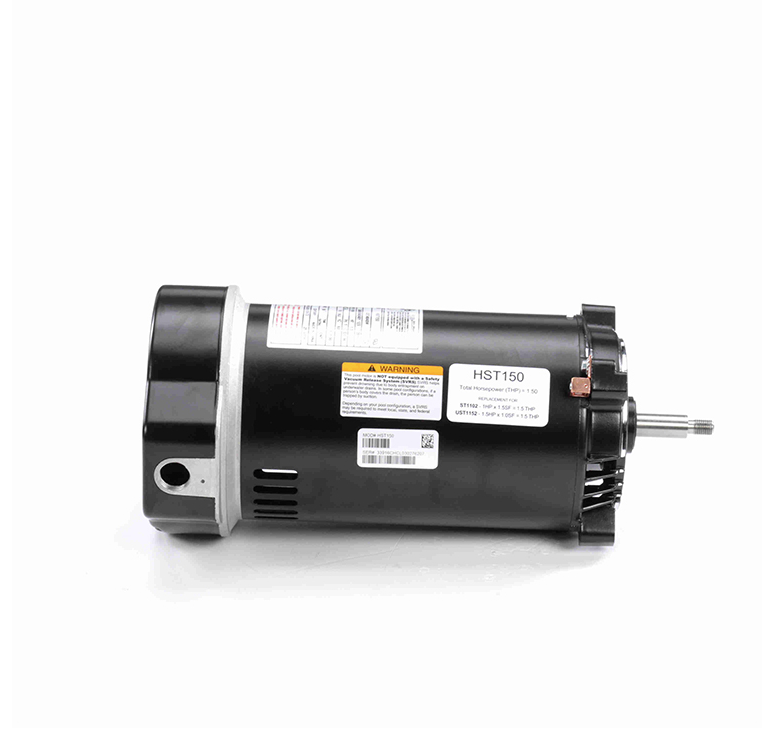

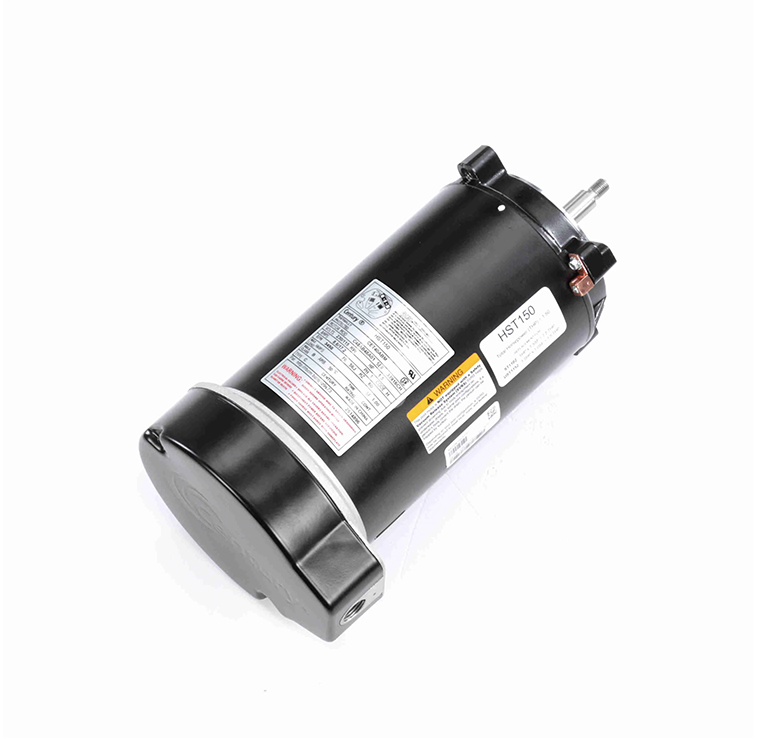

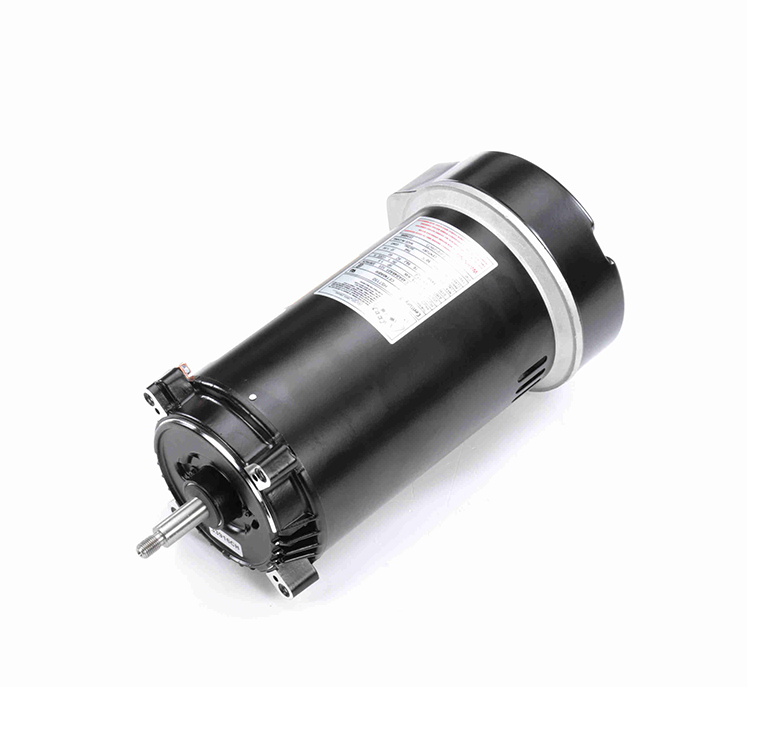

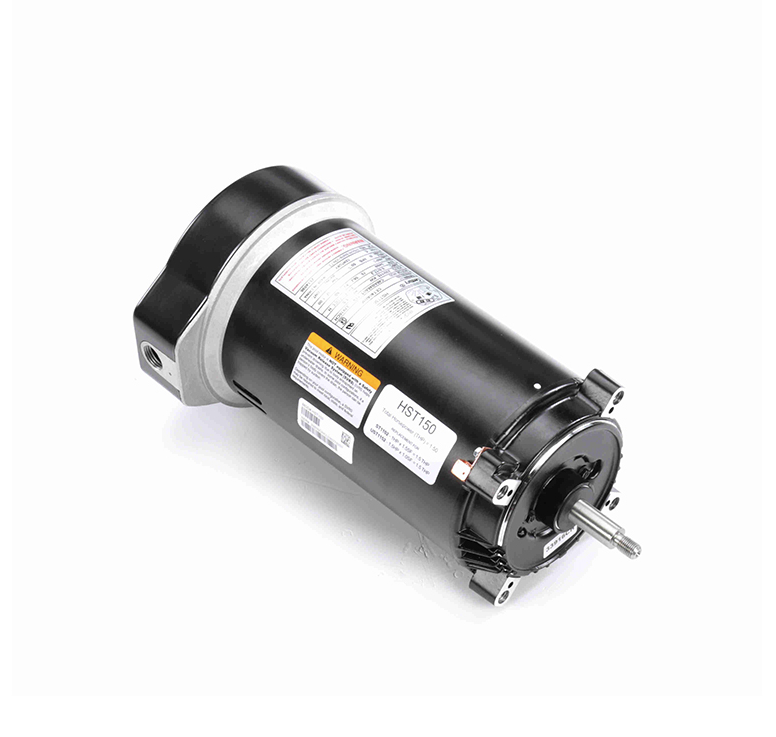

Century Centurion Series 1.5HP 115/230V 1 Phase 56J Pump Motor HST150
Enjoy reliable, efficient water circulation for your pool or spa with the Century Centurion Pro HST150 Pump Motor. Designed for robust performance and easy installation, this professional-grade motor delivers the power and durability you need for consistent, worry-free operation.
Key Features
- Powerful Performance: 1.5 horsepower and 3450 RPM ensure strong, steady water flow for optimal pool conditions.
- Voltage Versatility: Compatible with both 115V and 230V electrical systems for flexible installation.
- 56J Frame Construction: Standardized 56J frame for easy compatibility with a wide range of pool pump components.
- Open Drip Proof (ODP) Enclosure: Protects the motor from moisture and debris, enhancing longevity.
- Automatic Overload Protection: Built-in safety feature helps prevent overheating and extends motor life.
- Threaded Pump End: Provides a secure, stable connection for straightforward installation.
- Sealed Ball Bearings: Premium bearings at both ends for smooth, long-lasting operation.
- Stainless Steel Shaft: 5/8” threaded shaft made from 303 stainless steel for durability and corrosion resistance.
Benefits
- Effortless Installation: User-friendly design and standardized frame simplify the replacement process.
- Dependable Operation: Engineered for continuous duty in demanding pool environments.
- Enhanced Safety: Overload protection and ODP enclosure help ensure safe, reliable performance.
- Trusted Quality: Backed by Century’s reputation for durable, high-performance motors.
Specifications
- Model: HST150
- Horsepower: 1.5 HP
- Voltage: 115/230V
- Frame: 56J
- RPM: 3450
- Shaft: 5/8” Threaded, 303 Stainless Steel
- Bearing Type: Sealed Ball
- Duty Cycle: Continuous
- Enclosure: Open Dripproof
- Color: Satin Black
- Frequency: 60 Hz
- Full Load Amps: 17.2/8.6 A
- Insulation Class: B
- Motor Design: Capacitor Start
- Rotation: CCWPE
- Thermal Protection: Auto
- Speeds: 1-Speed
- Length: 11.84 Inches
- Phase: 1-Phase
- Service Factor: 1.00
- Approvals: UL Approved, UL Recognized (E46412), CSA Certified (LR43341)
- Sub Brand: Century®
- Type: C
The Century Centurion Pro HST150 Pump Motor is a top choice for pool and spa owners seeking reliable, efficient water circulation. With its robust design, versatile voltage options, and professional safety features, this motor ensures your pool stays clean and inviting—so you can relax and enjoy every swim.
