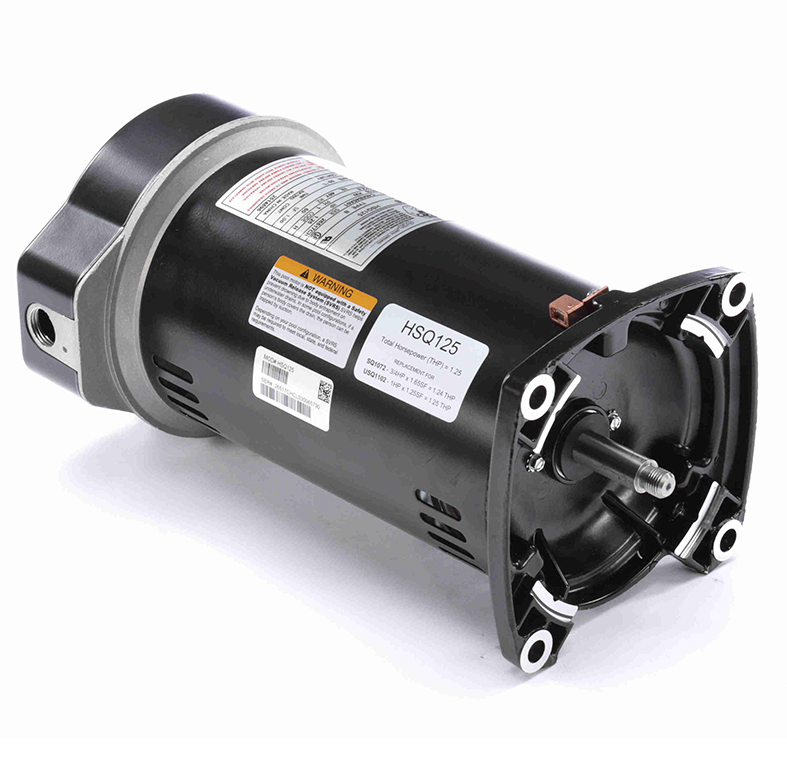

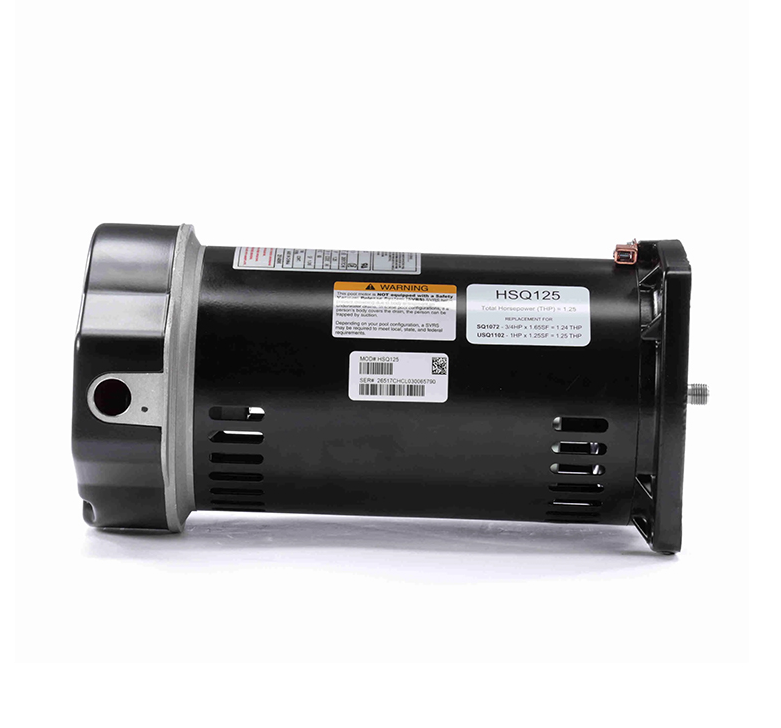

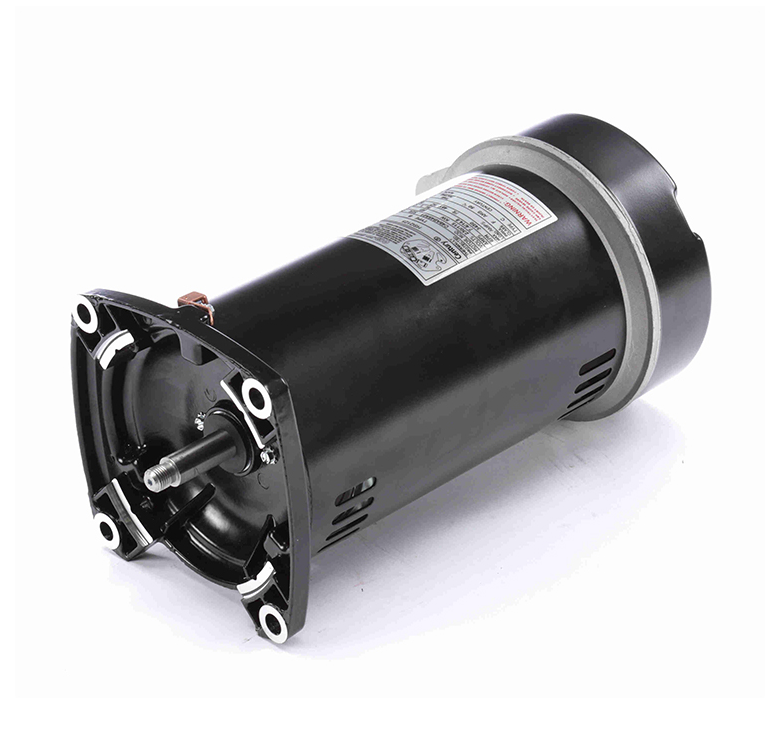

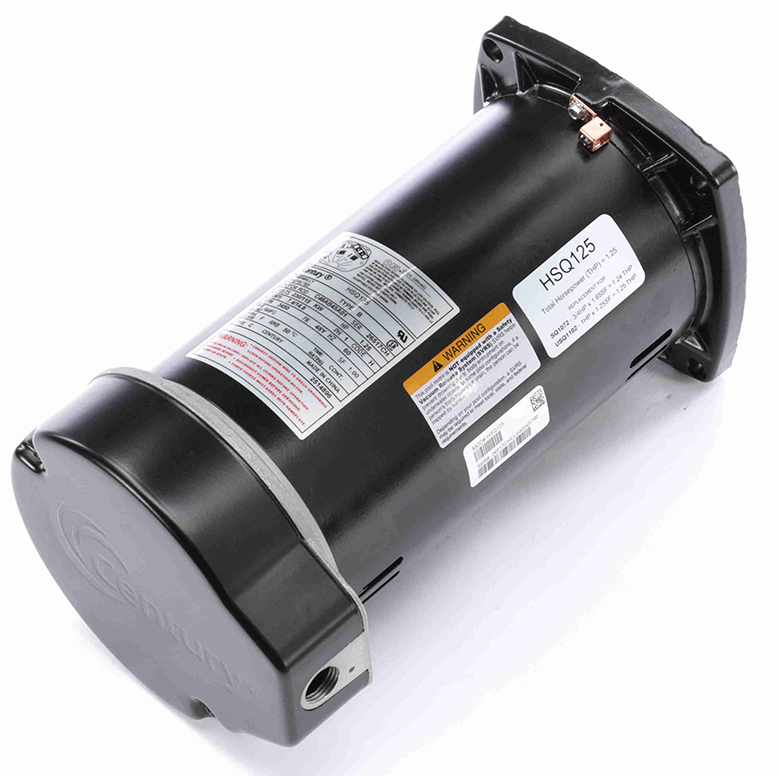

Century Centurion Series 1.25HP 115/230V 1 Phase 48Y Pump Motor HSQ125

Century Centurion Series 1.25HP 115/230V 1 Phase 48Y Pump Motor HSQ125

Power your pool or spa with efficiency and reliability using the Century Centurion Pro HSQ125 Square Flange Pump Motor. This professional-grade motor is engineered for easy installation and robust performance, making it a top choice for pool professionals and homeowners alike.

Key Features

• Professional-Grade Performance: Designed for demanding pool and spa applications.
• Hybrid End Frame Design: Unique BX hole placement and terminal board layout provide ample room for wiring and easy installation.
• PCB Terminal Board: Crafted from highly durable material for a hand- and tool-friendly experience.
• Voltage Change Device: Incorporates a new voltage change plug to minimize wiring errors, fitting only to clearly defined spade terminals.
• Definitive Shaft Access: Clearly marked access path for straightforward installation and service.
• Sealed Ball Bearings: Dependable 203 bearings at both ends for smooth, long-lasting operation.
• Threaded Stainless Steel Shaft: 5/8-inch shaft made from 303 stainless steel for durability and compatibility.

Benefits

• Effortless Installation: User-friendly design features make setup and maintenance simple.
• Reliable Operation: Engineered for continuous duty in demanding pool environments.
• Enhanced Safety: Voltage change plug helps prevent wiring mistakes, ensuring safe operation.
• Trusted Quality: Backed by Century’s reputation for durable, high-performance motors.

Specifications

• Model: HSQ125
• Horsepower: 1.25 HP
• Voltage: 115/230 V
• Frame: 48Y
• RPM: 3450
• Shaft: 5/8" Threaded, 303 Stainless Steel
• Bearing Type: Sealed Ball (203)
• Duty Cycle: Continuous
• Enclosure: Open Dripproof
• Color: Satin Black
• Flange Type: Square
• Frequency: 60 Hz
• Full Load Amps: 14.8/7.4 A
• Insulation Class: F
• Motor Design: Capacitor Start
• Rotation: CCWPE
• Thermal Protection: Auto
• Speeds: 1-Speed
• Length: 12.03 Inches
• Phase: 1-Phase
• Service Factor: 1.00
• Approvals: UL 1081, UL Recognized (E25022), CSA Certified (LR43341)
• Sub Brand: Century®
• Type: C

The Century Centurion Pro HSQ125 Square Flange Pump Motor delivers dependable power and easy installation for your pool or spa. With professional-grade features and trusted durability, this motor ensures your water stays clear and inviting—so you can enjoy a worry-free swimming experience.
