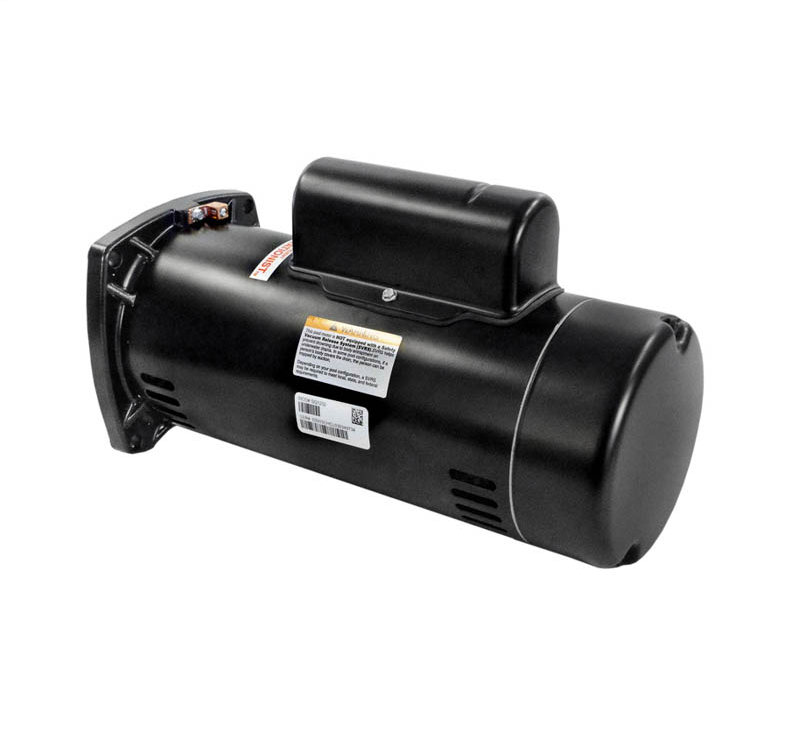

Century .75HP 115/230V 1 Phase 48Y Pump Motor USQ1072

Century .75HP 115/230V 1 Phase 48Y Pump Motor USQ1072

Give your pool pump a reliable boost with the Century® USQ1072 Square Flange Pool Filter Motor. Designed for smooth operation and long-lasting performance, this up-rated, two-compartment motor is a perfect fit for a variety of popular pool pump brands. Its robust construction and thoughtful features make pool maintenance easier and more efficient.

Key Features

• 0.75 HP up-rated motor for consistent water flow
• Square flange, 48Y frame for easy compatibility with many pool pumps
• Threaded 303 stainless steel shaft for secure, corrosion-resistant mounting
• Two-compartment design for added protection and durability
• Open drip-proof enclosure for effective cooling
• Sealed ball bearings for smooth, quiet operation
• Auto protector for built-in thermal safety
• Satin black finish for a sleek, professional look
• Service Factor: 1.27 for reliable performance under varying loads

Benefits

• Supports clear, clean pool water with steady, dependable filtration
• Quiet and efficient operation for a more enjoyable poolside environment
• Compatible with a wide range of pumps, including Hayward MaxFlo XL, Jacuzzi Cygnet, Jandy MHP/MHPU, Sta-Rite Dyna-Pro, Max-E Glas, and Dura-Glas models
• Designed to handle demanding pool conditions with a durable, corrosion-resistant shaft and enclosure
• Simple installation with standard square flange and threaded shaft

Specifications

• Horsepower: 0.75 HP (Up-Rated)
• Voltage: 115/230V, 60 Hz
• Amperage: 13.4/6.7A
• RPM: 3450 (Single Speed)
• Frame: 48Y, Square Flange
• Shaft: 5/8" diameter, 303 stainless steel, threaded
• Overall Length: 11.50 inches
• Ambient Temperature: Up to 50°C
• Enclosure: Open Drip Proof (ODP)
• Bearings: Sealed ball bearings
• Insulation Class: B
• Motor Design: Capacitor start
• Rotation: Counterclockwise pump end (CCWPE)
• Duty Cycle: Continuous
• Certifications: UL 1081 Approved, UL Recognized, CSA Certified

Enjoy reliable pool performance and effortless water circulation with the Century® USQ1072 Pool Filter Motor—engineered for durability, efficiency, and peace of mind.
