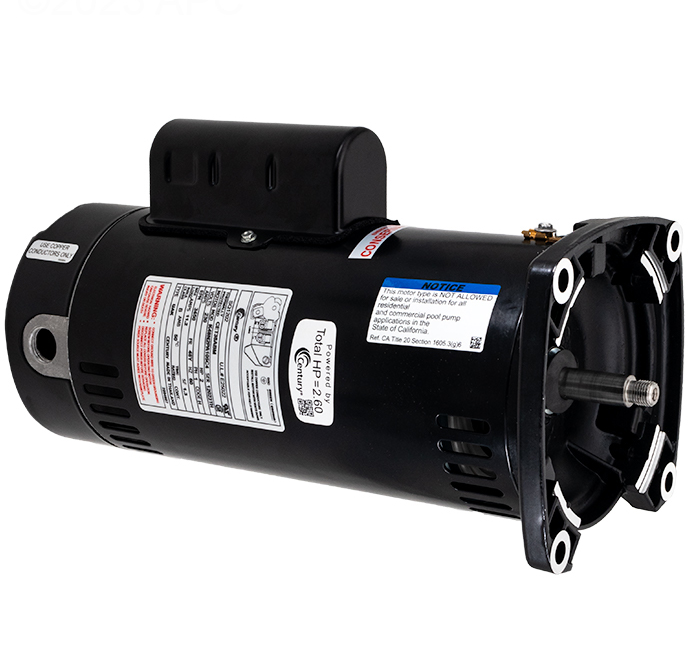

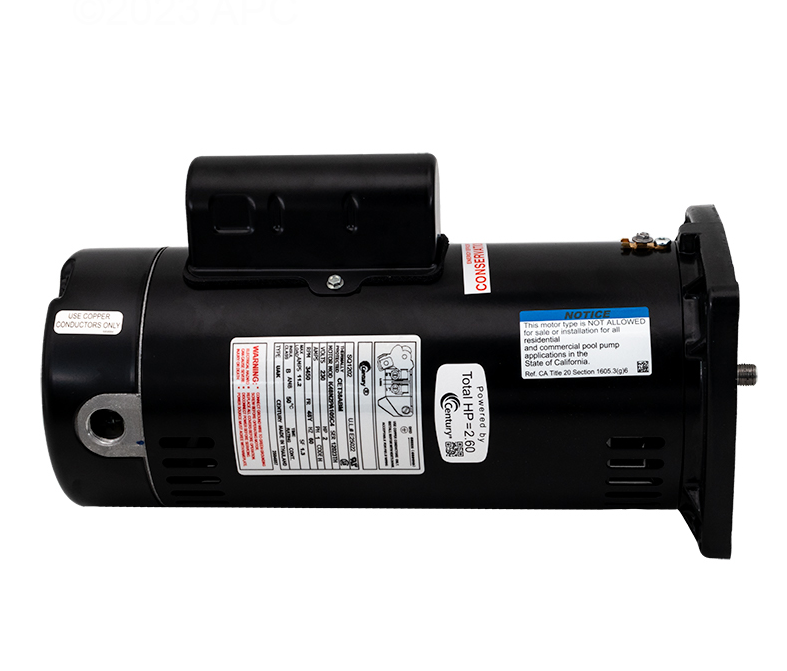

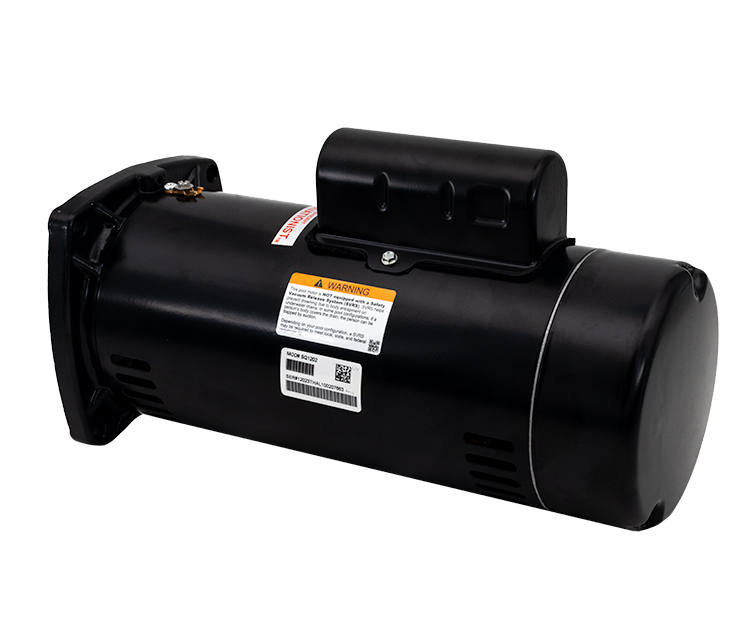

Century 2HP 230V 48Y Square Frame Motor SQ1202

Century 2HP 230V 48Y Square Frame Motor SQ1202

The Century® SQ1202 Square Flange Pool Filter Motor delivers reliable and energy-efficient performance for medium to large pool and spa applications. Featuring the distinguished “Conservationist™” motor technology, this 2 HP motor is crafted for durability and compatibility with top brands, making it ideal for demanding residential and commercial pool systems.

Key Features & Benefits

• Energy-Efficient “Conservationist™” Design
  Supports lower operating costs with improved efficiency over standard models.
• Full-Rated 2 HP Output
  Provides strong, consistent water flow for optimal filtration and circulation in larger pool systems.
• Durable Stainless Steel Threaded Shaft
  Built with 303 stainless steel for long service life and corrosion resistance in harsh pool environments.
• Sealed Ball Bearings
  Promote quiet, smooth operation and help reduce maintenance needs.
• Capacitor Start, Two-Compartment Construction
  Provides reliable startup and simplifies wiring and servicing.
• Open Drip Proof (ODP) Enclosure
  Designed to tolerate poolside conditions and resist moisture ingress.
• Thermal Overload Protection
  Automatic shutoff protects the motor against overheating and excessive load.
• Direct Replacement for Popular Pumps
  Compatible with Jandy MHP/MHPU and Sta-Rite Supermax pump parts for easy integration.

Specifications

• Horsepower: 2 HP
• Voltage: 230V
• Speed: 3450 RPM
• Frame: 48Y, Square Flange
• Service Factor: 1.3
• Amperage: 11.2 A
• Shaft Type: Threaded (1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH)
• Shaft Material: 303 Stainless Steel
• Bearings: Sealed Ball Bearings
• Enclosure: Open Drip Proof (ODP)
• Thermal Protection: Automatic
• Insulation Class: B
• Mounting: Square Flange
• Rotation: Counterclockwise Pump End
• Ambient Temperature: 50°C
• Duty Cycle: Continuous
• Certifications: UL Recognized, CSA Certified

The Century SQ1202 combines robust performance, long-lasting construction, and energy efficiency for a reliable solution in pool filter motor applications.
