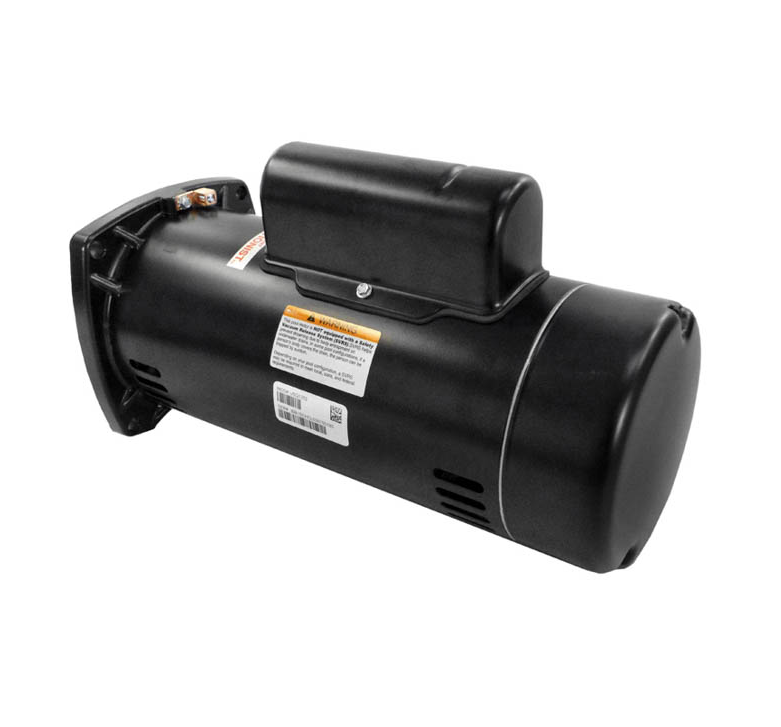

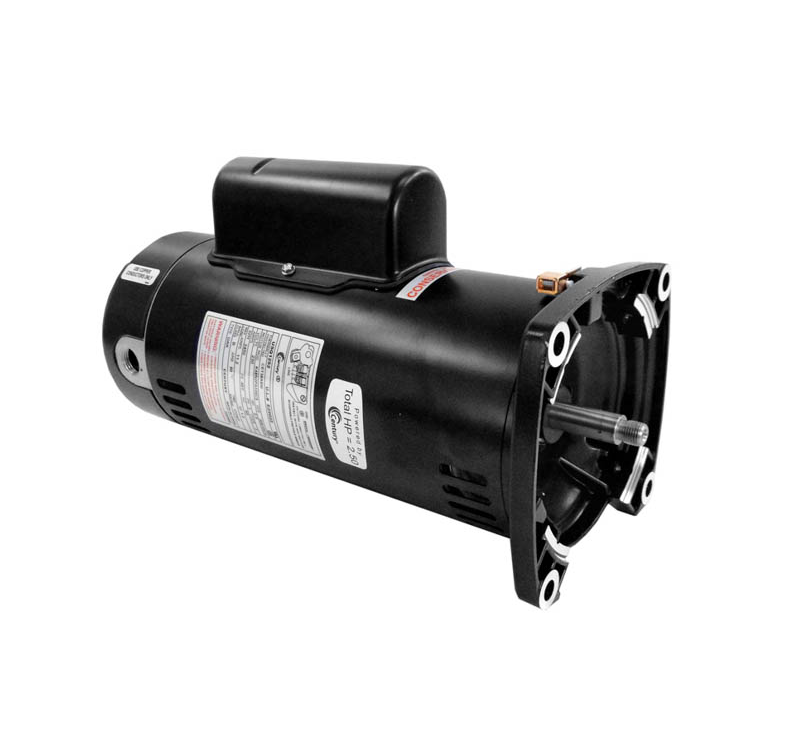

Century 2.5HP 115/230V 1 Phase 48Y Pump Motor USQ1252

Century 2.5HP 115/230V 1 Phase 48Y Pump Motor USQ1252

Power your pool with confidence using the Century 2.5HP 48Y Pump Motor. Designed for robust performance and long-lasting reliability, this motor is a favorite for a wide variety of in-ground pool pumps. Its efficient design and durable construction make it an excellent choice for pool owners who want dependable operation and easy installation.

Key Features

• 2.5 HP single-phase motor delivers powerful water circulation
• Dual voltage capability (115/230V) for flexible installation

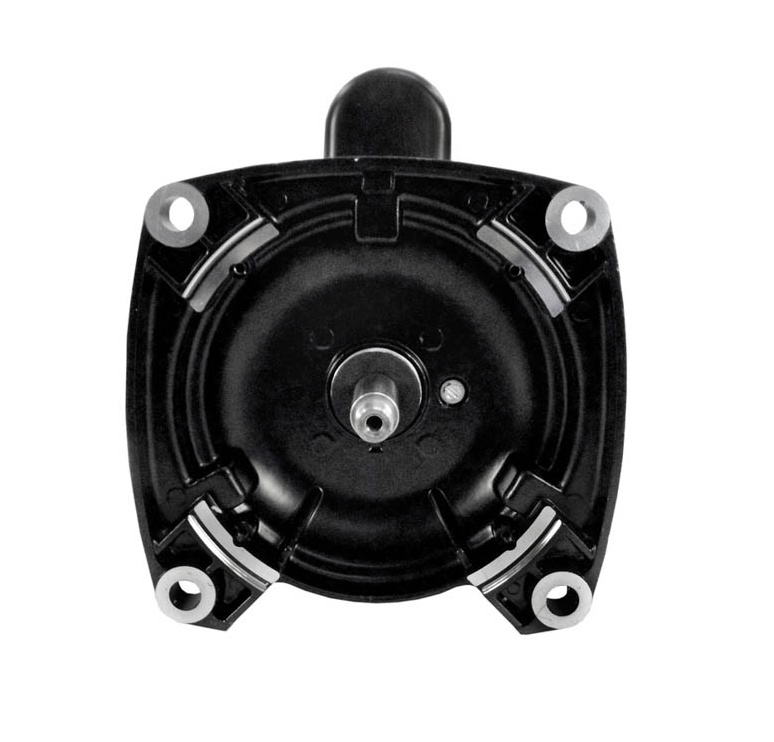

• 48Y frame with square flange for compatibility with many popular pool pumps
• Threaded 5/8" 303 stainless steel shaft resists corrosion for long-term durability
• Sealed ball bearings for smooth, quiet, and low-maintenance operation
• Open drip-proof (ODP) enclosure for effective cooling
• Automatic overload protection for added safety
• Capacitor start design for efficient energy use and reliable starts
• Service factor: 1.0 for consistent, full-rated performance
• UL 1081 certified for pool and spa use

Benefits

• Maintains clear, inviting pool water with strong, steady flow
• Quiet operation enhances your poolside experience
• Built to handle challenging pool environments with corrosion-resistant materials
• Simple installation with a standard square flange and threaded shaft
• Compatible with many popular pump models, including Sta-Rite Max-E Glas, Dura Glas, and Dyna Glas

Specifications

• Horsepower: 2.5 HP
• Voltage: 115/230V, 60 Hz
• Amperage: 11.5A (at 230V)
• RPM: 3450 (Single Speed)
• Frame: 48Y, Square Flange
• Shaft: 5/8" diameter, 303 stainless steel, threaded
• Enclosure: Open Drip Proof (ODP)
• Bearings: Sealed ball bearings
• Ambient Temperature: Up to 50°C
• Rotation: Counterclockwise (facing shaft)
• Motor Design: Capacitor start
• Service Factor: 1.0
• Certification: UL 1081
• Warranty: 1 year manufacturer warranty

Enjoy reliable, energy-efficient pool performance season after season with the Century 2.5HP 48Y Pump Motor—crafted for easy installation, quiet operation, and lasting value.
