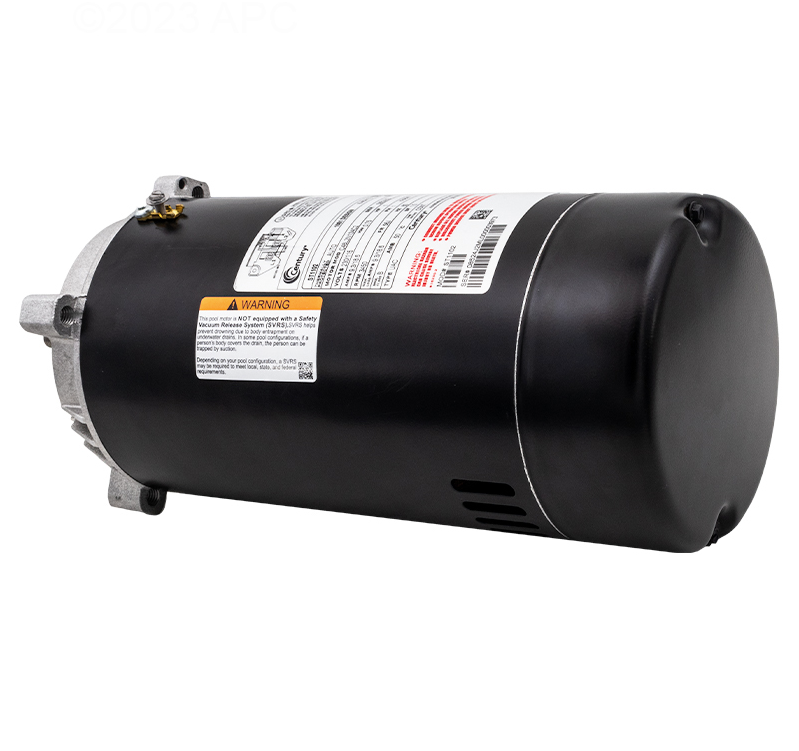

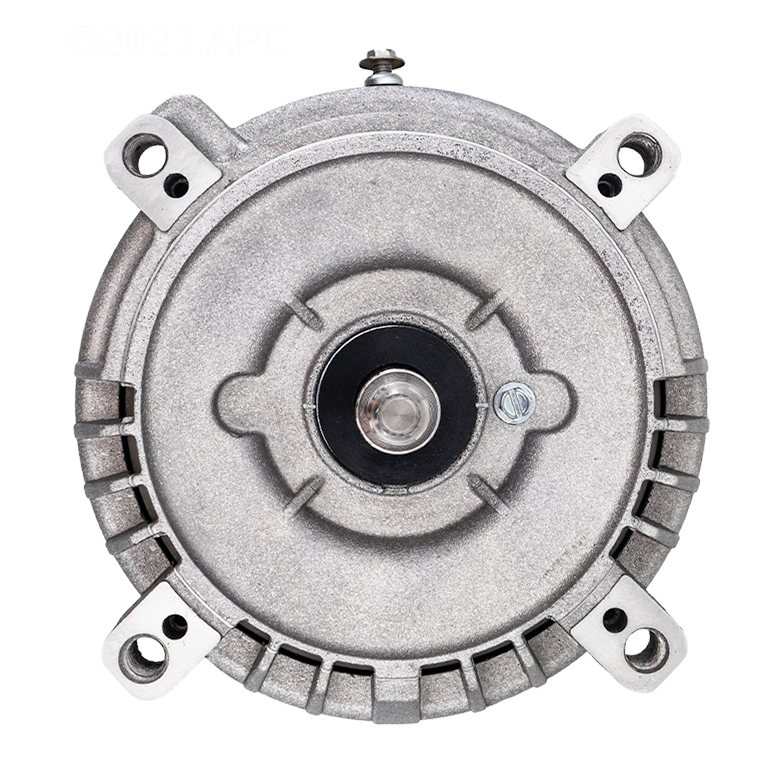

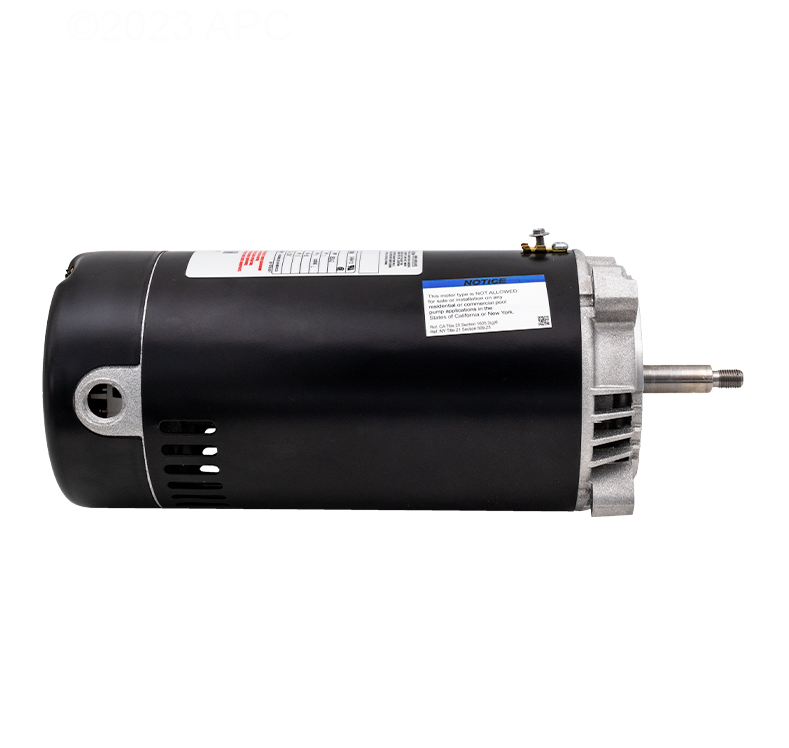

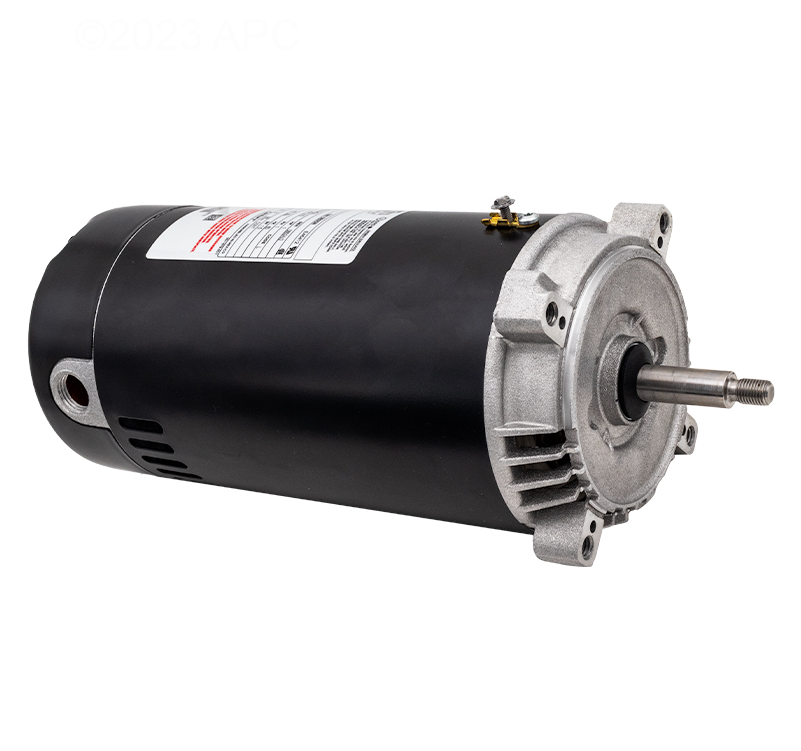

Century 1HP 115/230V 1 Phase 56J Pump Motor ST1102
Experience reliable performance and lasting value with the Century ST1102 1HP Pool and Spa Pump Motor. Designed to meet the demanding needs of pool owners, this single-phase motor delivers consistent power and smooth operation for a wide range of pool and spa applications. Its robust construction and thoughtful features make it a trusted choice for residential pools.
Key Features
- 1 HP full-rated motor for dependable pool and spa circulation
- Single-phase, 115/230V operation for flexible installation
- 56J frame with a threaded stainless steel shaft for easy, direct mounting to compatible pumps
- Sealed ball bearings and a 303 stainless steel shaft ensure durability and quiet operation
- Open drip-proof (ODP) design for effective cooling and extended motor life
- Automatic overload protection for added safety and peace of mind
- Service Factor: 1.5 for reliable performance under varying loads
- 3450 RPM for powerful water movement
- Compatible with many popular inground pool pumps, including Hayward Super Pump, Maxflo, and others
Benefits
- Delivers consistent, energy-efficient performance for clear, inviting pool water
- Designed for quiet operation, minimizing noise around your pool area
- Built to withstand tough pool environments with corrosion-resistant materials
- Simple installation process thanks to the threaded shaft and standard 56J frame
- Minimal maintenance required, allowing you to enjoy more time in the water
Specifications
- Horsepower: 1 HP (Full Rated)
- Voltage: 115/230V, 60 Hz
- Amperage: 18.6/9.3A
- Speed: 3450 RPM (Single Speed)
- Frame: 56J, threaded shaft, C-Face mount
- Shaft Material: 303 stainless steel, 5/8" diameter
- Enclosure: Open Drip Proof (ODP)
- Bearings: Sealed ball bearings
- Thermal Protection: Automatic overload protector
- Warranty: 1 year from installation date
Enjoy effortless pool maintenance and reliable water circulation with the Century ST1102 Pump Motor—crafted for performance, durability, and ease of use.
