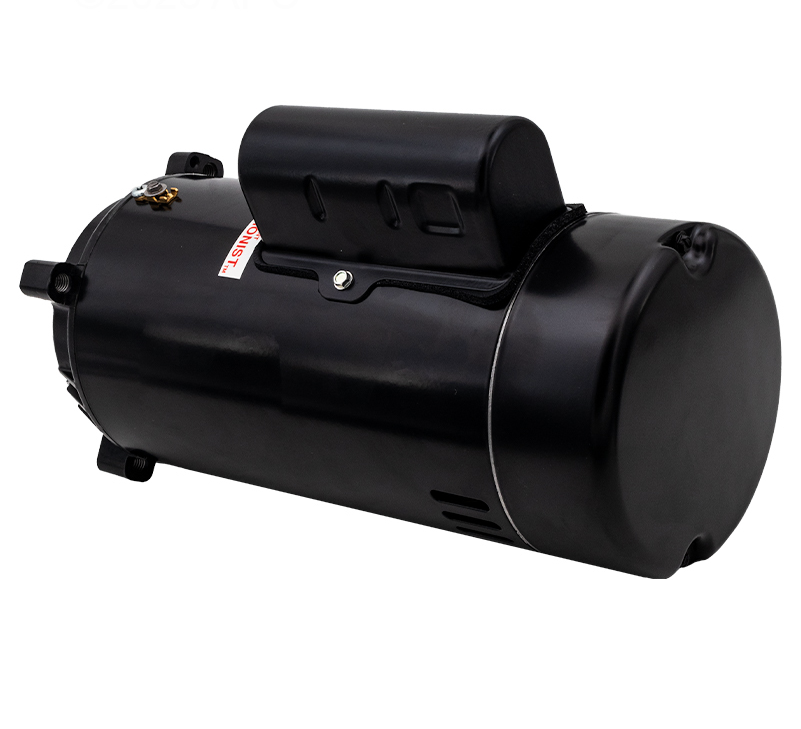

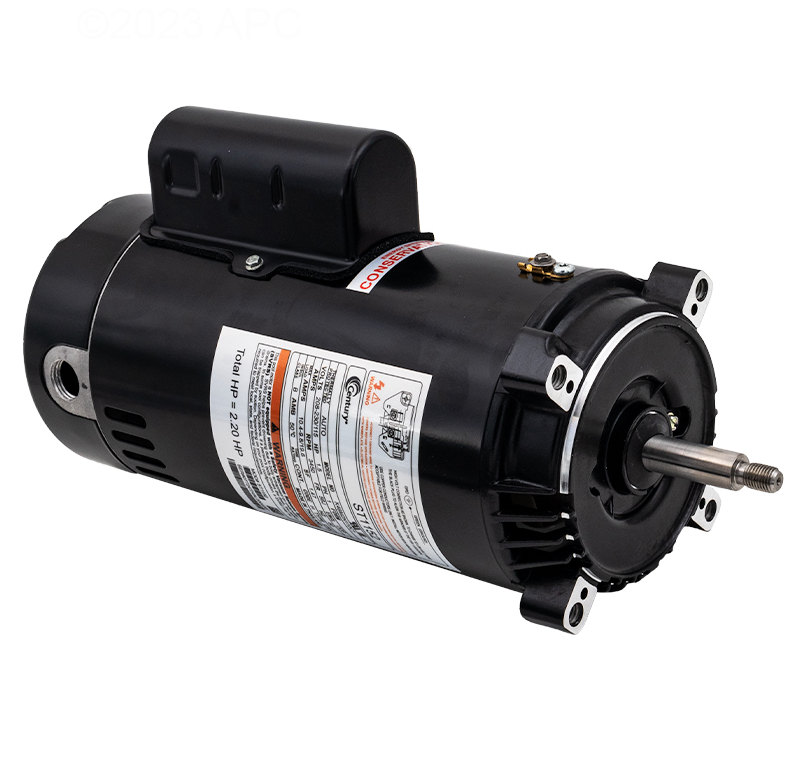

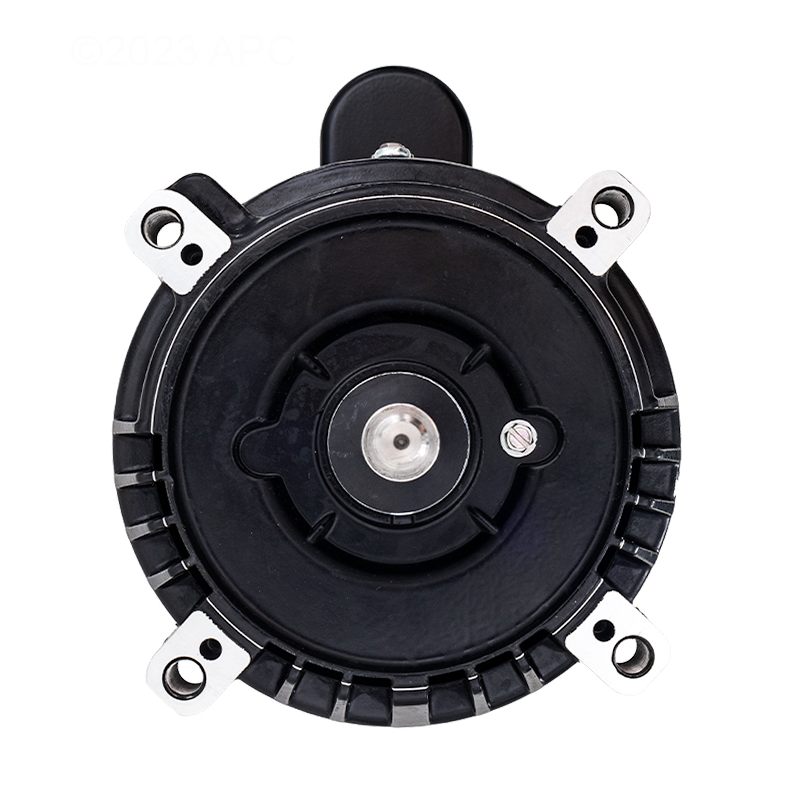

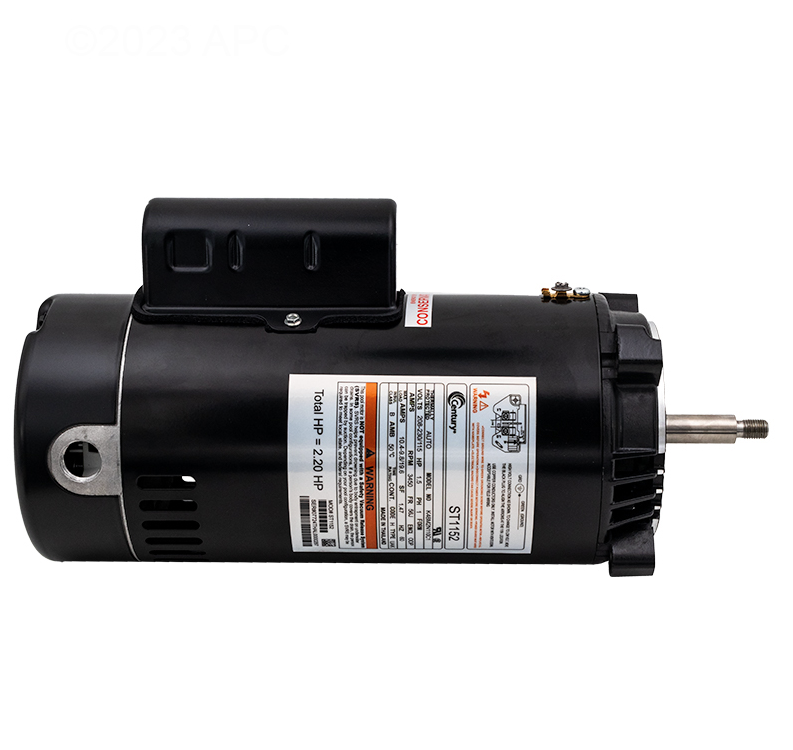

Century 1.5 HP 115/208-230V 1 Phase 56J Pump Motor ST1152

Century 1.5 HP 115/208-230V 1 Phase 56J Pump Motor ST1152

Bring reliable power and smooth performance to your pool system with the Century ST1152 Pool Pump Motor. Crafted for efficiency and longevity, this 1.5 HP motor is a favorite among pool owners and professionals alike. Its thoughtful engineering and robust construction make it an excellent choice for a wide range of pool and spa applications.

Key Features

• 1.5 HP single-phase motor delivers strong, consistent water flow
• Dual voltage capability (208-230/115V) for flexible installation options
• 56J frame with threaded shaft for easy and secure pump mounting
• Sealed ball bearings for quiet, dependable operation
• Capacitor start-capacitor run design for efficient energy use and smooth starts
• Sealed switch design offers added protection from moisture and debris
• 303 stainless steel shaft resists corrosion for enhanced durability
• Open drip-proof (ODP) enclosure for effective cooling
• UL 1081 certified, meeting rigorous safety and performance standards
• 50°C ambient temperature rating for reliable operation in demanding environments

Benefits

• Helps maintain clear, inviting pool water with steady circulation
• Designed for energy efficiency, helping to manage operating costs
• Quiet operation for a peaceful poolside experience
• Built with quality materials to withstand harsh pool conditions
• Simple installation process with standard frame and threaded shaft

Specifications

• Horsepower: 1.5 HP
• Voltage: 208-230/115V, 60 Hz
• Amperage: 7.0-7.8/15.6A
• Speed: 3600 RPM (Single Speed)
• Frame: 56J, threaded shaft
• Shaft Material: 303 stainless steel, 304 bearing shaft end
• Enclosure: Open Drip Proof (ODP)
• Bearings: Sealed ball bearings
• Ambient Temperature: 50°C (max)
• Certification: UL 1081

Trust the Century ST1152 Pool Pump Motor for dependable, efficient performance—season after season. Perfect for both new installations and as a replacement for worn-out motors, it brings lasting value and peace of mind to your pool care routine.
