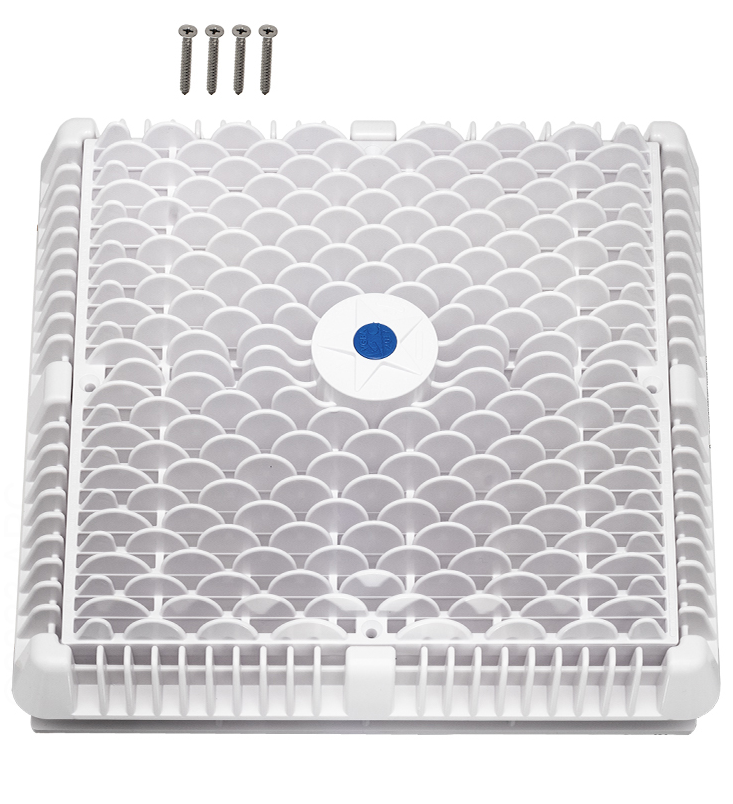

Aquastar 12" Square Wave Suction Outlet Cover WAV12WR101

Aquastar 12" Square Wave Suction Outlet Cover WAV12WR101

Boost safety and flow in your pool with the AquaStar WAV12WR101 12" x 12" Square Wave Suction Outlet Cover. This anti-entrapment cover is engineered to retrofit most standard 12" square, 3/4" deep frames, making upgrades and compliance both simple and reliable.

Key Features & Benefits

• Universal-style retrofit fits most existing 12" square, 3/4" deep frames with an 11-1/4" center-to-center, 4-screw pattern, minimizing reconstruction work.
• Anti-entrapment wave design and vented riser help improve safety for swimmers while maintaining strong circulation.
• Manufactured from superior UV-resistant engineered polymers to resist fading, cracking, and chemical damage in harsh pool environments.
• Trademarked VGB compliance button makes it easy to visually confirm the cover is VGB 2008 compliant from the deck or underwater.
• High-flow performance delivers approximately 361 GPM at 1.3 fps with a 90.8 sq in open area, supporting efficient filtration and turnover.
• All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011, NSF/ANSI 50-2009a, and ASTM G154 UV exposure standards for safety and durability.
• Designed for both floor and wall installations with a minimum sump depth of 3", adding flexibility for new builds and retrofits.
• Recommended replacement cycle is every five years from installation to maintain safety and code compliance.

Specifications

• Model: WAV12WR101
• Brand: AquaStar Pool Products

• Cover size: 12" x 12" square footprint
• Open area: 90.8 square inches
• Rated flow: 361 GPM at 1.3 fps (floor/wall)
• Minimum sump depth: 3"
• Material: UV-resistant engineered polymer
• Color: White
• Included: Cover, frame, vented riser ring, and #316 stainless steel screws

Choose the AquaStar WAV12WR101 for a professional-grade, VGB-compliant suction outlet upgrade that combines easy retrofitting, robust safety, and high hydraulic performance.
