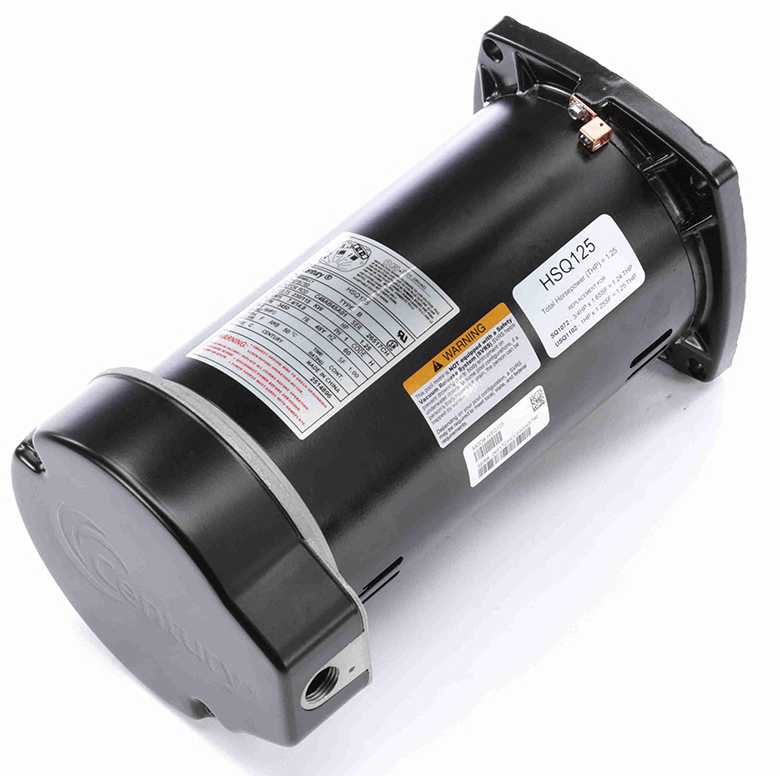

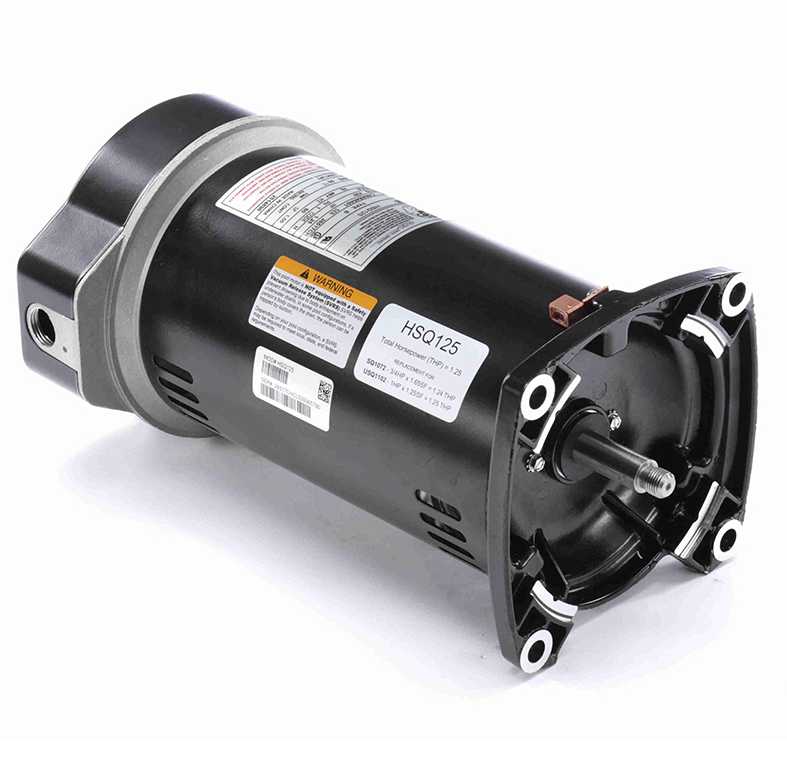

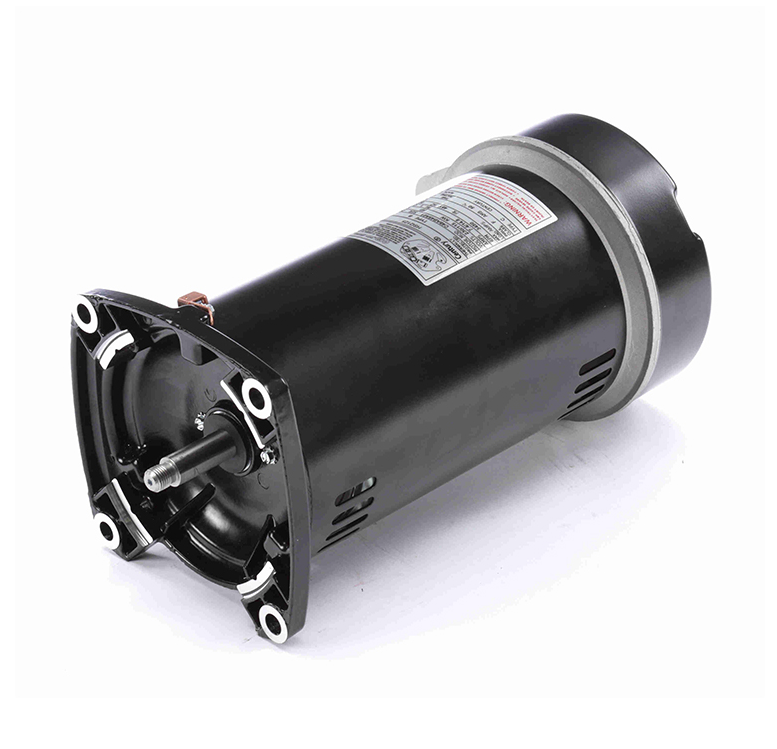

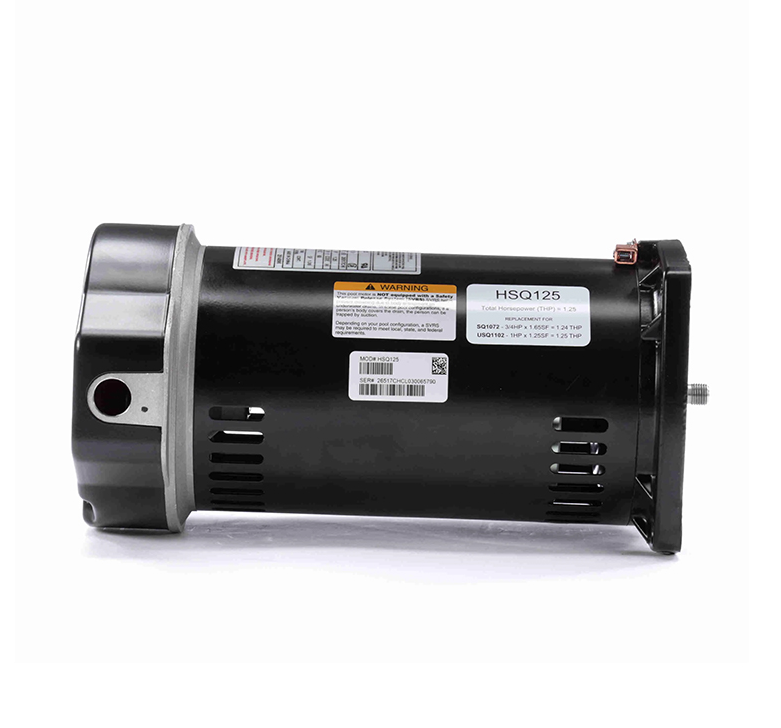

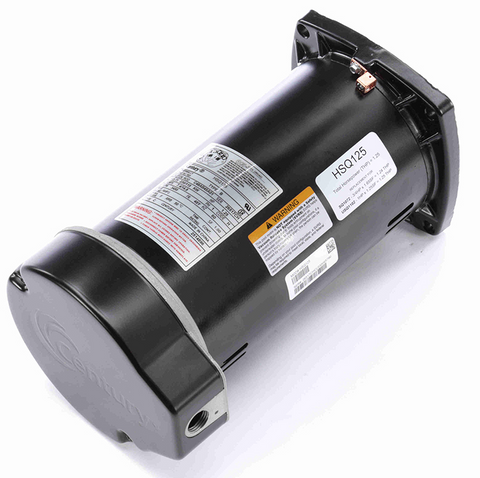

Century Centurion Series 1.25HP 115/230V 1 Phase 48Y Pump Motor HSQ125
Power your pool or spa with efficiency and reliability using the Century Centurion Pro HSQ125 Square Flange Pump Motor. This professional-grade motor is engineered for easy installation and robust performance, making it a top choice for pool professionals and homeowners alike.
Key Features
- Professional-Grade Performance: Designed for demanding pool and spa applications.
- Hybrid End Frame Design: Unique BX hole placement and terminal board layout provide ample room for wiring and easy installation.
- PCB Terminal Board: Crafted from highly durable material for a hand- and tool-friendly experience.
- Voltage Change Device: Incorporates a new voltage change plug to minimize wiring errors, fitting only to clearly defined spade terminals.
- Definitive Shaft Access: Clearly marked access path for straightforward installation and service.
- Sealed Ball Bearings: Dependable 203 bearings at both ends for smooth, long-lasting operation.
- Threaded Stainless Steel Shaft: 5/8-inch shaft made from 303 stainless steel for durability and compatibility.
Benefits
- Effortless Installation: User-friendly design features make setup and maintenance simple.
- Reliable Operation: Engineered for continuous duty in demanding pool environments.
- Enhanced Safety: Voltage change plug helps prevent wiring mistakes, ensuring safe operation.
- Trusted Quality: Backed by Century’s reputation for durable, high-performance motors.
Specifications
- Model: HSQ125
- Horsepower: 1.25 HP
- Voltage: 115/230 V
- Frame: 48Y
- RPM: 3450
- Shaft: 5/8" Threaded, 303 Stainless Steel
- Bearing Type: Sealed Ball (203)
- Duty Cycle: Continuous
- Enclosure: Open Dripproof
- Color: Satin Black
- Flange Type: Square
- Frequency: 60 Hz
- Full Load Amps: 14.8/7.4 A
- Insulation Class: F
- Motor Design: Capacitor Start
- Rotation: CCWPE
- Thermal Protection: Auto
- Speeds: 1-Speed
- Length: 12.03 Inches
- Phase: 1-Phase
- Service Factor: 1.00
- Approvals: UL 1081, UL Recognized (E25022), CSA Certified (LR43341)
- Sub Brand: Century®
- Type: C
The Century Centurion Pro HSQ125 Square Flange Pump Motor delivers dependable power and easy installation for your pool or spa. With professional-grade features and trusted durability, this motor ensures your water stays clear and inviting—so you can enjoy a worry-free swimming experience.
